8262H220AMBAC220/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8262H220-MB-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDA0MTZ8aW1hZ2UvanBlZ3xhR00wTDJoallpOHhNRGd3TVRZME1qYzJOak0yTmk5SlRrUkJVMVpXUVV4V1JWaGZPREkyTWtneU1qQmZUVUpmVTFOZk16QXdlRE13TUM1cWNHY3w1YThkYzgwM2MxY2RjN2ZhNmY2ZmQ1MjU1NzJkZDQ3MzBkMDhkODExNDJhNzMwZjU4YzM1MDVlYzEzNjY1Yjg5
27230199 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8262H220AMBAC220/60D

Description

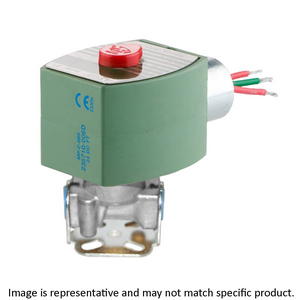

8262H220AMBAC220/60D SOLENOID VALVE, 1/4 X 5/32 2NC SS 10.1/F W (SMARTCATALOG)

Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 220/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 210 PSI/Light Oil 145 PSI/Water 200 PSI; -13 To 180 Deg F; Buna-N Seal; Stainless Steel

Part #

8262H220AMBAC220/60D

BDI #
27230199

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

506.7806 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 506.78 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
220/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 210 PSI | Light Oil 145 PSI | Water 200 PSI
Operating Pressure Range
Air - Inert Gas 0 To 210 PSI | Light Oil 0 To 145 PSI | Water 0 To 200 PSI
Operating Temperature Range
-13 To 180 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.52 Cv Factor | 5/32" Orifice Size | Air - Inert Gas - Water - Light Oil Fluid | Normally Closed | General Service | Direct Acting | NBR Disc | Ambient Temperature -25 To 55 Deg C | Mounting Bracket | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.28
Long Description
Solenoid Valve; 1/4" FNPT Port; 2 Port - 2 Way; 2 Position; 220/60 VAC; Hydraulic - Pneumatic; Solenoid/Spring Return; Air - Inert Gas 210 PSI/Light Oil 145 PSI/Water 200 PSI; -13 To 180 Deg F; Buna-N Seal; Stainless Steel
Overall Height
3.12 Inch | 79.25 Millimeter
