8316G024MODC240/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8316G064-MO-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg3Nzl8aW1hZ2UvanBlZ3xhRGMwTDJobVpDOHhNRGM1TnpjeE5qUXdOak13TWk5SlRrUkJVMVpXUVV4V1JWaGZPRE14Tmtjd05qUmZUVTlmUWxKVFh6TXdNSGd6TURBdWFuQm58YjAwOTU2ODljMDA1ZDEzYjcwM2U4NzBmNmEyMzA3YmUzNWQzZTJjYzA5NTY5M2EzODI0ZTRkYjllYTg5ZmQ0Nw
20696178 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8316G024MODC240/DC

Description

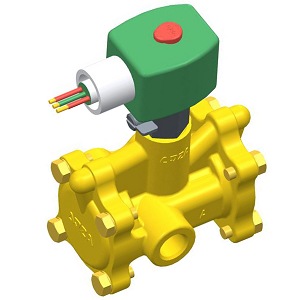

8316G024MODC240/DC SOLENOID VALVE ; 1/2"X5/8" 3NC BRASS 22.6/FW

Valve; Solenoid; 1/2" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 250 PSI; 32 To 120 Deg F; Buna-N Seal; Brass

Part #

8316G024MODC240/DCD

BDI #
20696178

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1342.53 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,342.53 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
1/2" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
240 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
250 PSI
Operating Pressure Range
10 To 250 PSI
Operating Temperature Range
32 To 120 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
3.2 Cv Factor | 5/8" Orifice Size | Normally Closed | Ambient Temperature 0 To 40 Deg C | Manual Operator
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
4.1
Long Description
Valve; Solenoid; 1/2" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 250 PSI; 32 To 120 Deg F; Buna-N Seal; Brass
Overall Height
6.18 Inch | 156.972 Millimeter
Overall Length
4.31 Inch | 109.474 Millimeter
Overall Width
2.76 Inch | 70.104 Millimeter
