8320G184MBMOAC120/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8320G174-MBMO-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDE4MjV8aW1hZ2UvanBlZ3xhR1EzTDJnMU55OHhNRGd3TnpFeU5EY3lNVFk1TkM5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56UmZUVUpOVDE5Q1VsTmZNekF3ZURNd01DNXFjR2N8NzE2ZWU4ZmNiNzczMmJlMThiMzg5ODllZWVjMTA4MDRlYmY2NGE5NjIzZDRjMTA3NTlkNThjYTViMmE5NjM2ZQ
27136829 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8320G184MBMOAC120/60D

Description

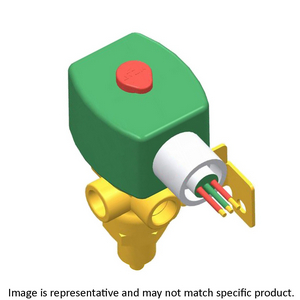

8320G184MBMOAC120/60D SOLENOID VALVE ; 1/4 X 3/32 3NC BRASS 10.1/F W

Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 120/60 VAC; Solenoid/Spring Return; 150 PSI; 32 To 200 Deg F; Buna-N Seal; Brass

Part #

8320G184MBMOAC120/60D

BDI #
27136829

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

395.30370000000005 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 395.30 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
120/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
0 To 150 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.12 Cv Factor | 3/32" Orifice Size | Normally Closed | Direct Acting | Ambient Temperature 0 To 52 Deg C | Mounting Bracket | Manual Operator
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.5
Long Description
Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 120/60 VAC; Solenoid/Spring Return; 150 PSI; 32 To 200 Deg F; Buna-N Seal; Brass
Overall Width
2.565 Inch | 65.151 Millimeter
Overall Height
4.748 Inch | 120.599 Millimeter
Overall Length
3.385 Inch | 85.979 Millimeter
