8320G204MSAC100/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8320G202-MS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjQ1NjZ8aW1hZ2UvanBlZ3xhR1JpTDJnek5pOHhNRFl3TlRFek56ZzFORFE1TkM5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeU1ESmZUVk5mTXpBd2VETXdNQzVxY0djfGZhYzc5MDJlMzVkMTI3ZTkwNjgyMzgwNzRiZDM3MWU0ZjhjZjA0YjM4OWQyNmQxNDEyOTU3ODc4OGJiZTRkNDM
27139465 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8320G204MSAC100/50D

Description

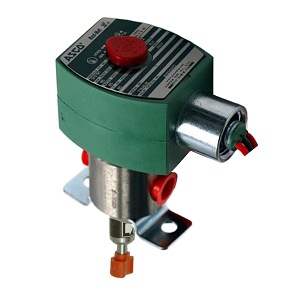

8320G204MSAC100/50D SOLENOID VALVE, 1/4 X 3/32 3NO SS 10.1/F W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; Air - Inert Gas 150 PSI/Light Oil - Water 140 PSI; 32 To 200 Deg F; Buna-N Seal; Stainless Steel

Part #

8320G204MSAC100/50D

BDI #
27139465

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

661.7956 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 661.80 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
100/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 150 PSI | Light Oil - Water 140 PSI
Operating Pressure Range
Air - Inert Gas 0 To 150 PSI | Light Oil - Water 0 To 140 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.12 Cv Factor | 3/32" Orifice Size | Air - Light Oil - Water | Normally Open | Ambient Temperature 0 To 52 Deg C
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; Air - Inert Gas 150 PSI/Light Oil - Water 140 PSI; 32 To 200 Deg F; Buna-N Seal; Stainless Steel
Overall Length
3.125 Inch | 79.375 Millimeter
Overall Width
1.951 Inch | 49.555 Millimeter
Overall Height
5.18 Inch | 131.572 Millimeter
