EF8210G004DC240/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8210G004-EF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTcxMTJ8aW1hZ2UvanBlZ3xhRGsxTDJnelpTOHhNRGd3TkRrd01UQTROVEl4TkM5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd01EUmZSVVpmUWxKVFh6TXdNSGd6TURBdWFuQm58NWNiNzMyYjg4OGJiMzJjMWYzMTNhYmIzZDk3Y2MxNjllMDYyOGUxMDgyZTZlNGFmMTQxYjVjOWVlNDBhZWZhOA
20700240 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8210G004DC240/DC

Description

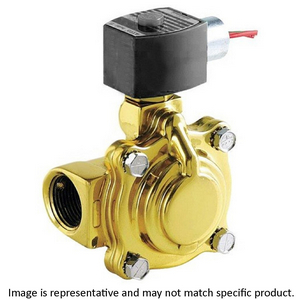

EF8210G004DC240/DC SOLENOID VALVE ; 1"X1" 2NC BRASS 11.6W

Valve; 1" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 150 Deg F; Buna-N Seal; Brass

Part #

EF8210G004DC240/DCD

BDI #
20700240

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

746.8427 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 746.84 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
240 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
5 To 125 PSI
Operating Temperature Range
32 To 150 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
13 Cv Factor | 1" Orifice Size | Normally Closed | Air - Inert Gas - Water - Light Oil Fluid | Explosion Proof | 18" Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
4.4
Long Description
Valve; 1" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240 VDC; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 150 Deg F; Buna-N Seal; Brass
Overall Height
5.635 Inch | 143.129 Millimeter
Overall Length
3.46 Inch | 87.892 Millimeter
Overall Width
3.75 Inch | 95.25 Millimeter
