EF8320G172MOAC100/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8320G172-EF-MO-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8Mzk3NTZ8aW1hZ2UvanBlZ3xhR1ZqTDJnME5pOHhNRGd3TkRZek56TTJPRE0xTUM5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56SmZSVVpmVFU5ZlFsSlRYek13TUhnek1EQXVhbkJufDk2YjBhZTVlMDNhMTlmZDM1YzMyY2IzODBiY2Q0M2YyN2FiNDM2OTg0Mzk5YTE1YmE0Nzk0Yzg3NDkwMjQ5MDg
27090669 Hydraulic and Pneumatic Valves  Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8320G172MOAC100/50D

Description

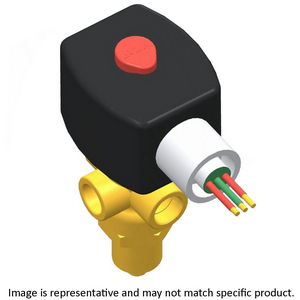

EF8320G172MOAC100/50D SOLENOID VALVE, 1/4 X 1/16 3U BRASS 10.1/F W (SMARTCATALOG)

Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; Air - Inert Gas 125 PSI/Light Oil - Water 130 PSI; 32 To 200 Deg F; Buna-N Seal; Brass

Part #

EF8320G172MOAC100/50D

BDI #
27090669

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

688.0194 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 688.02 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
UNSPSC
40141600
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
100/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 125 PSI | Light Oil - Water 130 PSI
Operating Pressure Range
Air - Inert Gas 0 To 125 PSI | Light Oil - Water 0 To 130 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.09 Cv Factor | 1/16" Orifice Size | Universal Operation | Air - Inert Gas - Water - Light Oil Fluid | Explosion Proof | Manual Operator | 457MM Lead Length
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
1.5
Long Description
Valve; 1/4" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 100/50 VAC; Solenoid/Spring Return; Air - Inert Gas 125 PSI/Light Oil - Water 130 PSI; 32 To 200 Deg F; Buna-N Seal; Brass
Overall Length
3.125 Inch | 79.375 Millimeter
Overall Width
1.95 Inch | 49.53 Millimeter
Overall Height
4.748 Inch | 120.599 Millimeter
