EF8320G174AC120/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8320G174-EF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDE2NjF8aW1hZ2UvanBlZ3xhREZqTDJnME1DOHhNRGd3TkRZek56VTJORGsxT0M5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56UmZSVVpmUWxKVFh6TXdNSGd6TURBdWFuQm58MGVjMThjMTBlNjI4OTRiZmMxNzIzZGU4OTQyY2IzYmNlY2Q0NDc2MTc4ODRiMWVkNTBmYTFjZWFlMTcyMmNjNA
21838401 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8320G174AC120/60D

Description

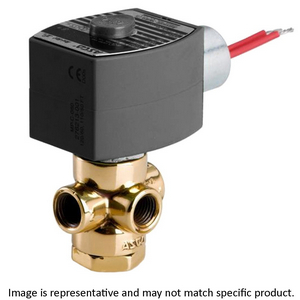

EF8320G174AC120/60D SOLENOID VALVE ; 3/2 1/4IN PORT 120V BRASS 100PSI

Solenoid Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; 120/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; 100 PSI; 32 To 200 Deg F; Buna-N Seal; Brass

Part #

EF8320G174AC120/60D

BDI #
21838401

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

459.2049 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 459.20 / each BDIExpress
QTY

Inventory

Total: 2

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.68
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
120/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
100 PSI
Operating Pressure Range
0 To 100 PSI
Operating Temperature Range
32 To 200 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.12 Cv Factor | 3/32" Orifice Size | Universal Operation | Direct Acting | Ambient Temperature 0 To 52 Deg C | Explosion Proof
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
1.5
Long Description
Solenoid Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; 120/60 VAC; Hydraulic | Pneumatic; Solenoid | Spring Return; 100 PSI; 32 To 200 Deg F; Buna-N Seal; Brass
Overall Length
3.125 Inch | 79.375 Millimeter
Overall Width
1.95 Inch | 49.53 Millimeter
Overall Height
3.748 Inch | 95.199 Millimeter
