EF8345G001AC120/60 110/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8345G001-EF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NDIyNzV8aW1hZ2UvanBlZ3xhREppTDJoa09DOHhNRGd3TWpNNU5qQXdORE00TWk5SlRrUkJVMVpXUVV4V1JWaGZPRE0wTlVjd01ERmZSVVpmUWxKVFh6TXdNSGd6TURBdWFuQm58ODczMjFlMjYzNTVhNGVkOWZjZmU2YWIzNmY0ZjMwMzhjYTJkNWYzMmQ3ZjJjNGM5YjEyNjYyMDQyZGJmZmU4ZA
21430183 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8345G001AC120/60 110/50D

Description

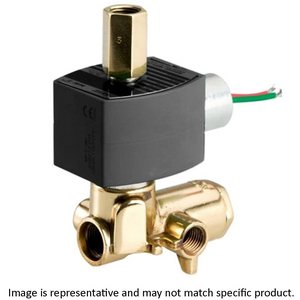

EF8345G001AC120/60 110/50D SOLENOID VLVE ; 1/4" FNPT 5P-4W 2POS 110/120VAC

Solenoid Valve; 1/4" FNPT Port; 5 Port | 4 Way; 2 Position; 110/50 VAC | 120/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

EF8345G001AC120/60,110/50D

BDI #
21430183

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

857.8767 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 857.88 / each BDIExpress
QTY

Inventory

Total: 5

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.97
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
110/50 VAC | 120/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
10 To 150 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.09 Cv Factor | 1/16" IN - 3/32" Exhaust Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | Explosion Proof | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
2.14
Long Description
Solenoid Valve; 1/4" FNPT Port; 5 Port | 4 Way; 2 Position; 110/50 VAC | 120/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 150 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Width
2.06 Inch | 52.324 Millimeter
Overall Height
4.62 Inch | 117.348 Millimeter
Overall Length
3.13 Inch | 79.5 Millimeter
