EF8353J039AC120/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8353J039-EF-300x300.jpg?context=bWFzdGVyfHJvb3R8ODIzNXxpbWFnZS9qcGVnfGFEUTJMMmhrWkM4eE1EYzNNamM1TURRME5EQTJNaTlKVGtSQlUxWldRVXhXUlZoZk9ETTFNMG93TXpsZlJVWmZNekF3ZURNd01DNXFjR2N8MTg5ZWMwZWM0OWI4NmUwZjBkMjQ5NWJjNDk3YzgwN2MwMzM0MGEyZDNmYmIzNmEyYmQ1MDgxNmRjZDVkNGVhMA
21430190 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EF8353J039AC120/60D

Description

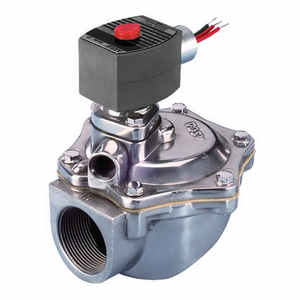

EF8353J039AC120/60D SOLENOID VALVE ; 1-1/2" FNPT 3/8" FNPT 2P-2W 120/60VAC

Diaphragm Valve; 1-1/2" FNPT | 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 120/60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 125 PSI; 32 To 185 Deg F; Buna-N Seal; Aluminum

Part #

EF8353J039AC120/60D

BDI #
21430190

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

867.9603999999999 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 867.96 / each BDIExpress
QTY

Inventory

Total: 3

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.56
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
1-1/2" FNPT | 3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120/60 VAC
Media
Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
5 To 125 PSI
Operating Temperature Range
32 To 185 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
53 Cv Factor | 2" NPT Orifice Size | Air - Inert Gas Fluid | Integral Pilot | Explosion Proof
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
8.74
Long Description
Diaphragm Valve; 1-1/2" FNPT | 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 120/60 VAC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 125 PSI; 32 To 185 Deg F; Buna-N Seal; Aluminum
Overall Height
6.281 Inch | 159.537 Millimeter
Overall Length
6.261 Inch | 159.029 Millimeter
Overall Width
5.385 Inch | 136.779 Millimeter
