OFST8220G403AC208/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8220G401-OFSF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTgyOTl8aW1hZ2UvanBlZ3xhRFE1TDJneU1DOHhNRGd3TkRJME1qWTBOVEF5TWk5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjME1ERmZUMFpUUmw5Q1VsTmZNekF3ZURNd01DNXFjR2N8YTc2NTk2YzJiYTA2ZWNkZWYzZTIwZTUwNWY0ZTUzYmY3YmFlMjNiM2NlNmFiNGNjMjBjMDk5Yzg5OWRlNmE3Nw
20710492 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

OFST8220G403AC208/60

Description

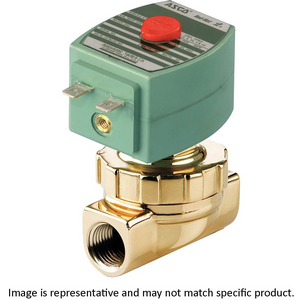

OFST8220G403AC208/60 VALVE UNIT ; 3/8 X 1/2 2NC BRASS 10.1/H W

Solenoid Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 208/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass

Part #

OFST8220G403AC208/60

BDI #
20710492

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

561.74 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 561.74 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
208/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 150 PSI | Steam 125 PSI
Operating Pressure Range
Hot Water 5 To 150 PSI | Steam 5 To 125 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
4.4 Cv Factor | 1/2" Orifice Size | Hot Water - Steam Fluid | Open Frame | Class H | High Temperature | Spade Terminal | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Long Description
Solenoid Valve; 3/8" FNPT Port; 2 Port | 2 Way; 2 Position; 208/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass
Overall Width
2.224 Inch | 56.5 Millimeter
Overall Length
3.15 Inch | 80 Millimeter
Overall Height
4.108 Inch | 104.343 Millimeter
