RPE4-103Z11/22000E1V https://www.bdiexpress.com/medias/INDARGHYVALVE-RPE4-103-E-300x300.jpg?context=bWFzdGVyfHJvb3R8NDYyN3xpbWFnZS9qcGVnfGFEWmlMMmhoTVM4eE1Ea3pNamt6T0RVek9UQXpPQzlKVGtSQlVrZElXVlpCVEZaRlgxSlFSVFJmTVRBelgwVmZNekF3ZURNd01DNXFjR2N8Y2M5NjYzMTY2MDk2MzQzODI0NGUxN2ExZGZmMGU3YTA3ZTVmMGY1YTM3ODkxM2ZmMTYwYTBkNmQ1YWQ2MmFiMg
22206921 Hydraulic and Pneumatic Valves

ARGO-HYTOS ARGO-HYTOS

RPE4-103Z11/22000E1V

Description

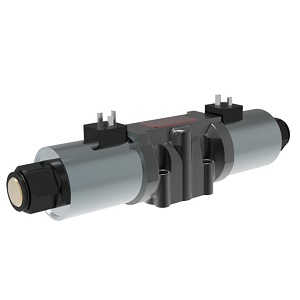

RPE4-103Z11/22000E1V DIR CNTRL VALVE ; SOL OPERATED SIZE 10 3 POS SPOOL

Spool Valve; Solenoid; 11.2MM; 4 Port-4 Way; 3 Position; Hydraulic; Solenoid - Spring/Solenoid - Spring Return; 22 VDC; 5080 PSI; -4 To 176 Deg F; Viton Seal

Part #

40546100

BDI #
22206921

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

403.7806 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 403.78 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ARGO-HYTOS
Manufacturer Name
ARGO-HYTOS
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
4.76
Product Group - BDI
F02352
Valve Type
Spool | Solenoid
Port Type
11.2MM
Number of Ports/Way
4 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Spring | Solenoid - Spring Return
Voltage
22 VDC
Media
Hydraulic
Maximum Pressure
5080 PSI
Operating Pressure Range
0 To 5080 PSI
Operating Temperature Range
-4 To 176 Deg F
Seal Type
Viton
Inch - Metric
Metric
Other Features
37 GPM Flow Capacity | With Connector
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Spool Solenoid
Manufacturer URL
https://www.argo-hytos.com
Weight / LBS
11.88
Long Description
Spool Valve; Solenoid; 11.2MM; 4 Port-4 Way; 3 Position; Hydraulic; Solenoid - Spring/Solenoid - Spring Return; 22 VDC; 5080 PSI; -4 To 176 Deg F; Viton Seal
Overall Height
3.819 Inch | 97 Millimeter
Overall Width
2.756 Inch | 70 Millimeter
Overall Length
12.52 Inch | 318 Millimeter
