S070B-SCG https://www.bdiexpress.com/medias/INDSMCVALVEX-S070B-00-BG-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI5NTB8aW1hZ2UvanBlZ3xhRFF4TDJoaE5DOHhNRFl3TlRNNU9EWTFOVEF3Tmk5SlRrUlRUVU5XUVV4V1JWaGZVekEzTUVKZk1EQmZRa2RmTXpBd2VETXdNQzVxY0djfDhkYjE2ZWYxOTdiMTc3YmQ2ZjMyYzAyMGZkNDk2NjhmZThmZjM4NjE1OTg4YWExMGYwZjdhNWY4MjA3NzcxNjQ
25713018 Hydraulic and Pneumatic Valves

SMC SMC

S070B-SCG

Description

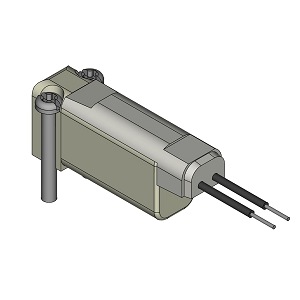

S070B-SCG 3 PORT SOLENOID VALVE

Valve; Solenoid; 3 Port - 3 Way; 2 Position; Pneumatic; 5 VDC; Solenoid/Spring Return; 45 PSI; 14 To 122 Deg F; Viton Seal; Plastic

Part #

S070B-SCG

BDI #
25713018

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

46.99 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 46.99 / each BDIExpress
QTY

Inventory

Total: 345

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
Not Available
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
5 VDC
Media
Pneumatic
Maximum Pressure
45 PSI
Operating Pressure Range
0 To 45 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Viton
Body Material
Plastic
Inch - Metric
Inch
Other Features
0.021 Cv Factor | Air - Inert Gas - Low Vacuum Fluid | Base Mounted with Screw
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.01102
Long Description
Valve; Solenoid; 3 Port - 3 Way; 2 Position; Pneumatic; 5 VDC; Solenoid/Spring Return; 45 PSI; 14 To 122 Deg F; Viton Seal; Plastic
Overall Length
1.063 Inch | 27 Millimeter
Overall Width
0.276 Inch | 7 Millimeter
Overall Height
0.433 Inch | 11 Millimeter
