SY3120-5G-C4-F1 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY3120-G-C4-F1-300x300.jpg?context=bWFzdGVyfHJvb3R8MjI3NTB8aW1hZ2UvanBlZ3xhR001TDJnMk1DOHhNRFl3TlRRME9EQXpOak00TWk5SlRrUlRUVU5XUVV4V1JWaGZVMWt6TVRJd1gwZGZRelJmUmpGZk16QXdlRE13TUM1cWNHY3xlYWY1OWE1Y2ZjYTIwMTcwZjEyYjA2YmY5MjM4ZjUzMWI4NGNhODI3NDUzNGY3OWFkM2Q2YjkzNDVkYmQ5ZGI0
25688943 Hydraulic and Pneumatic Valves

SMC SMC

SY3120-5G-C4-F1

Description

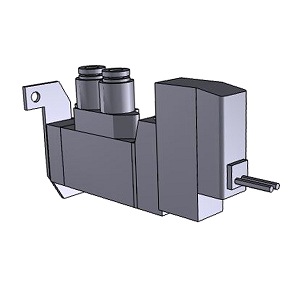

SY3120-5G-C4-F1 SOLENOID VALVE ; SGL BODY PT DC

Valve; 4 MM Tubing OD Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

SY3120-5G-C4-F1

BDI #
25688943

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

78.8362 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 78.84 / each
$ 78.84 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.06
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
4 MM Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.18/0.17 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | Grommet - 300MM Lead Wire | One Touch Fitting | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.17579
Long Description
Valve; 4 MM Tubing OD Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
2.734 Inch | 69.45 Millimeter
Overall Width
0.945 Inch | 24 Millimeter
Overall Height
1.744 Inch | 44.3 Millimeter
