SY3420-5LOU-M5-Q https://www.bdiexpress.com/medias/INDSMCVALVEX-SY3320-LO-M5-300x300.jpg?context=bWFzdGVyfHJvb3R8MjA0Nzl8aW1hZ2UvanBlZ3xhRFZtTDJnMU9DOHhNRFl3TlRRNE1ESTBOek15Tmk5SlRrUlRUVU5XUVV4V1JWaGZVMWt6TXpJd1gweFBYMDAxWHpNd01IZ3pNREF1YW5CbnxlNmU2M2VkNGUyOWRkZmU4MTQyY2IyNDJiNmQ2NTI2NTlmY2FlMTZlOGE4ZTQ1ZmQxZTBlZDFiOWVmYjQ5NzYw
25793289 Hydraulic and Pneumatic Valves

SMC SMC

SY3420-5LOU-M5-Q

Description

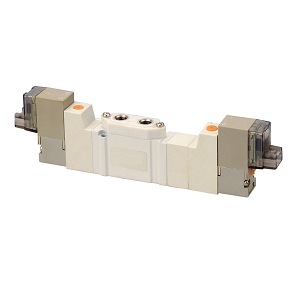

SY3420-5LOU-M5-Q SOLENOID VALVE ; DBL SOL BODY PT (DC)

Valve; M5 Port; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

SY3420-5LOU-M5-Q

BDI #
25793289

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

133.6013 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 133.60 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
M5
Number of Ports/Way
5 Port | 4 Way
Number of Positions
3 Position
Actuation
Solenoid - Air Pilot - Spring | Solenoid - Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.13 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | L Plug without Connector | With Non-Polar Type Light/Surge Voltage Suppressor | In/Exhaust Center/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.13332
Long Description
Valve; M5 Port; 5 Port - 4 Way; 3 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot - Spring/Solenoid - Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Height
1.122 Inch | 28.5 Millimeter
Overall Length
4.217 Inch | 107.1 Millimeter
Overall Width
0.457 Inch | 11.6 Millimeter
