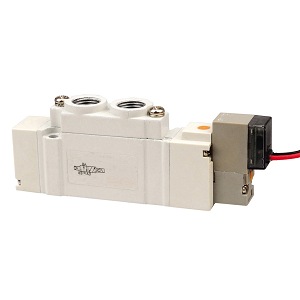

SY5120-1G-01 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY5120-G-01-300x300.jpg?context=bWFzdGVyfHJvb3R8MTkwNjV8aW1hZ2UvanBlZ3xhR1EyTDJoak9TOHhNRFl3TlRRNU5URTRPVFV6TkM5SlRrUlRUVU5XUVV4V1JWaGZVMWsxTVRJd1gwZGZNREZmTXpBd2VETXdNQzVxY0djfDU4ZWQyNjBjZGVmMTIxOTI1MTYzZTg5ZDM4ZGVjMzk5ODI5MzRmNzQ2YTRlN2U3ZjU5MzhjY2QwZDBhYzU5MTc
25610678 Hydraulic and Pneumatic Valves

SMC SMC

SY5120-1G-01

Description

SY5120-1G-01 5 PORT SOLENOID VALVE (SMARTCATALOG)

Valve; 1/8" RC Port; 5 Port - 4 Way; 2 Position; Pneumatic; 100/50-60 VAC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY5120-1G-01

BDI #
25610678

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

70.99 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 70.99 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
70
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1/8" RC
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
100/50-60 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.49/0.61 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | Grommet - 300MM Lead Wire | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.20421
Long Description
Valve; 1/8" RC Port; 5 Port - 4 Way; 2 Position; Pneumatic; 100/50-60 VAC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
3.522 Inch | 89.45 Millimeter
Overall Height
1.382 Inch | 35.1 Millimeter
Overall Width
0.654 Inch | 16.6 Millimeter
