SY5220-5WAOU-01F-Q https://www.bdiexpress.com/medias/INDSMCVALVEX-SY5220-W-01-300x300.jpg?context=bWFzdGVyfHJvb3R8MjE1OTF8aW1hZ2UvanBlZ3xhREpsTDJnNU15OHhNRFl3TlRrNU5EQTBPVFUyTmk5SlRrUlRUVU5XUVV4V1JWaGZVMWsxTWpJd1gxZGZNREZmTXpBd2VETXdNQzVxY0djfDJmMmVjNjExMjQ1NTcyMGZkNGY0ODViZDRhNDBjM2FlYWI4NmZmMDJmNWY1YzAyMTVmNTQyOTMwMDlhMDU2Zjk
25609317 Hydraulic and Pneumatic Valves

SMC SMC

SY5220-5WAOU-01F-Q

Description

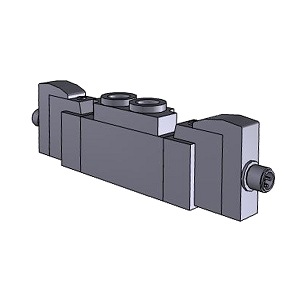

SY5220-5WAOU-01F-Q SOLENOID VALVE ; 5 PORT

Valve; 1/8" G Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY5220-5WAOU-01F-Q

BDI #
25609317

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

149.968 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 149.97 / each
$ 149.97 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1/8" G
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Solenoid - Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
15 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.49/0.61 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | M8 Connector without Cable | With Non-Polar Type Light/Surge Voltage Suppressor | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.25452
Long Description
Valve; 1/8" G Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Solenoid - Air Pilot/Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
4.929 Inch | 125.2 Millimeter
Overall Width
0.654 Inch | 16.6 Millimeter
Overall Height
1.283 Inch | 32.6 Millimeter
