SYJ712-5MZ-01 https://www.bdiexpress.com/medias/INDSMCVALVEX-SYJ712-M-300x300.jpg?context=bWFzdGVyfHJvb3R8MTYxMTN8aW1hZ2UvanBlZ3xhRE16TDJnd1l5OHhNRFl3TmpFMk56SXlPRFEwTmk5SlRrUlRUVU5XUVV4V1JWaGZVMWxLTnpFeVgwMWZNekF3ZURNd01DNXFjR2N8NGQzYjg5ZTYwNjcwNjIzN2NkMTA3ODg0YjYyMzM4ODM1ZTA3NTk4ZmFiNDgzMTBlMTEzZDhjNjlmNDZjOWJlNg
24989035 Hydraulic and Pneumatic Valves

SMC SMC

SYJ712-5MZ-01

Description

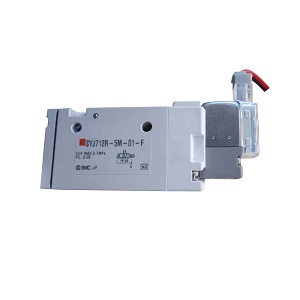

SYJ712-5MZ-01 SOL VLV ; SYJ700 VALVE

Solenoid Valve; 1/8" RC Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SYJ712-5MZ-01

BDI #
24989035

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

86.87 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 86.87 / each BDIExpress
QTY

Inventory

Total: 3

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.09
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" RC
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Air Pilot - Spring | Solenoid - Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.77/0.76 Cv Factor | Air Fluid | Body Ported | Normally Closed | Individual Pilot Exhaust | M Plug with 300MM Lead Wire | With Light/Surge Voltage Suppressor | Non Locking Push Type Manual Override | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.20026
Long Description
Solenoid Valve; 1/8" RC Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
2.783 Inch | 70.7 Millimeter
Overall Width
0.709 Inch | 18 Millimeter
Overall Height
1.677 Inch | 42.6 Millimeter
