SYJ7120-5LOS-01 https://www.bdiexpress.com/medias/INDSMCVALVEX-SYJ7120-LO-300x300.jpg?context=bWFzdGVyfHJvb3R8NDQxN3xpbWFnZS9qcGVnfGFEaGtMMmhoT0M4eE1EYzNNRGc1TnpJd056TXlOaTlKVGtSVFRVTldRVXhXUlZoZlUxbEtOekV5TUY5TVQxOHpNREI0TXpBd0xtcHdad3xmMjczNDYzMWMyNGE4MmU2Y2UxMWM3NzQxYTY4NjI1MTUyNjU1YjNmM2M3YjM3YWY0ZmJiYWJiMTcwZmM1NmZk
25809450 Hydraulic and Pneumatic Valves

SMC SMC

SYJ7120-5LOS-01

Description

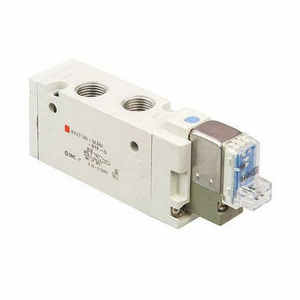

SYJ7120-5LOS-01 SOLENOID VALVE ; SGL SOL BODY PT

Valve; 1/8" RC Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Air Pilot - Spring/Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SYJ7120-5LOS-01

BDI #
25809450

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

81.24 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 81.24 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
1/8" RC
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Air Pilot - Spring | Solenoid - Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.58/0.63 Cv Factor | Air Fluid | Body Ported | Individual Pilot Exhaust | L Plug without Connector | With Surge Voltage Suppressor | Non Locking Push Type Manual Override | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.21913
Long Description
Valve; 1/8" RC Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VDC; Air Pilot - Spring/Solenoid - Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Width
0.709 Inch | 18 Millimeter
Overall Height
1.24 Inch | 31.5 Millimeter
Overall Length
3.421 Inch | 86.9 Millimeter
