VDW20LAXB https://www.bdiexpress.com/medias/INDSMCVALVEX-VDW-AIR-ALU-M5-300x300.jpg?context=bWFzdGVyfHJvb3R8MjAyMjl8aW1hZ2UvanBlZ3xhRGMwTDJnNU15OHhNRFl3TmpFNU56a3pNakEyTWk5SlRrUlRUVU5XUVV4V1JWaGZWa1JYWDBGSlVsOUJURlZmVFRWZk16QXdlRE13TUM1cWNHY3w1MDFlYTUzY2VkZDBmYmI0MzA3MTlmNjgyZjc0NDU1YWU2MWNmODYyM2E4YjkxNzUzMTAyYjQwMmU2YjU1NTg3
25740046 Hydraulic and Pneumatic Valves

SMC SMC

VDW20LAXB

Description

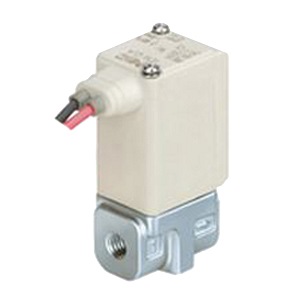

VDW20LAXB SOLENOID VALVE ; ALUMINUM BODY 2 PORT

Valve; Solenoid; M5 Port; 2 Port - 2 Way; 2 Position; Pneumatic; 24 VDC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Buna-N Seal; Aluminum

Part #

VDW20LAXB

BDI #
25740046

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

28.901799999999998 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 28.90 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
M5
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Metric
Other Features
0.18 Cv Factor | For Air | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.21312
Long Description
Valve; Solenoid; M5 Port; 2 Port - 2 Way; 2 Position; Pneumatic; 24 VDC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Buna-N Seal; Aluminum
Overall Length
1.201 Inch | 30.5 Millimeter
Overall Height
2.047 Inch | 52 Millimeter
Overall Width
0.787 Inch | 20 Millimeter
