VDW22PCB https://www.bdiexpress.com/medias/INDSMCVALVEX-VDW-WTR-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjA1MDN8aW1hZ2UvanBlZ3xhREJpTDJobVpDOHhNRFl3TmpFNU9Ea3hOVEV3TWk5SlRrUlRUVU5XUVV4V1JWaGZWa1JYWDFkVVVsOUNVbE5mTXpBd2VETXdNQzVxY0djfGE4MDg4NmY4NTUzMzU0NWVmYjMyNDE1ZTM3ODNhZGY5YTllMjM4NjFkYTU2NmI0YmE1NDJjYzVhOTExNDM3ZDQ
25812242 Hydraulic and Pneumatic Valves

SMC SMC

VDW22PCB

Description

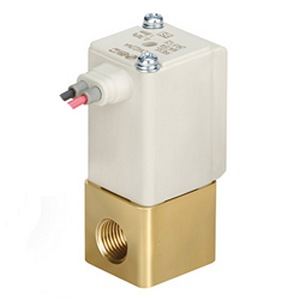

VDW22PCB BRASS (C37) BODY 2 PORT VALVE (SMARTCATALOG)

Valve; Solenoid; 1/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic; 110 VAC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Buna-N Seal; Brass

Part #

VDW22PCB

BDI #
25812242

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

26.27 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 26.27 / each BDIExpress
QTY

Inventory

Total: 34

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
115
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/8" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
110 VAC
Media
Hydraulic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.18 Cv Factor | For Water | Normally Closed
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.25353
Long Description
Valve; Solenoid; 1/8" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic; 110 VAC; Solenoid/Spring Return; 145 PSI; 14 To 122 Deg F; Buna-N Seal; Brass
Overall Height
2.047 Inch | 52 Millimeter
Overall Length
1.201 Inch | 30.5 Millimeter
Overall Width
0.787 Inch | 20 Millimeter
