VP3165V-109DB1(AC48V) https://www.bdiexpress.com/medias/INDSMCVALVEX-VP3165-D-300x300.jpg?context=bWFzdGVyfHJvb3R8NTQ1M3xpbWFnZS9qcGVnfGFHUTVMMmcxWWk4eE1EYzNNREUyTVRVd01ERTVNQzlKVGtSVFRVTldRVXhXUlZoZlZsQXpNVFkxWDBSZk16QXdlRE13TUM1cWNHY3w0YjRlNTU2MzVlNjE5ZmIzYjM3ZmE5ZWEyZTQwNzQ2Nzg5MjJiMTQ1YTdiNDgwOWQ1NDcyNWVlNDQxZDU2YTZh
18600537 Hydraulic and Pneumatic Valves

SMC SMC

VP3165V-109DB1(AC48V)

Description

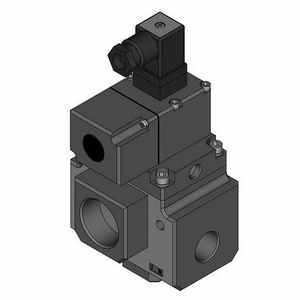

VP3165V-109DB1(AC48V) ; VP3/5/7 SOL VALVE 3-PORT

Solenoid Valve; 1" RC Port; 3 Port | 3 Way; 2 Position; 48 VAC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 30 PSI; 32 To 140 Deg F; Rubber Seal; Aluminum

Part #

VP3165V-109DB1(AC48V)

BDI #
18600537

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1" RC
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Air Pilot - Spring | Solenoid - Air Pilot Return
Voltage
48 VAC
Media
Pneumatic
Maximum Pressure
30 PSI
Operating Pressure Range
-14.68 To 30 PSI
Operating Temperature Range
32 To 140 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Body Ported | Body Size 1" | Vacuum Low Pressure | External Pilot | DIN Terminal
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Long Description
Solenoid Valve; 1" RC Port; 3 Port | 3 Way; 2 Position; 48 VAC; Pneumatic; Air Pilot - Spring | Solenoid - Air Pilot Return; 30 PSI; 32 To 140 Deg F; Rubber Seal; Aluminum
Overall Height
8.622 Inch | 219 Millimeter
Overall Length
4.449 Inch | 113 Millimeter
Overall Width
3.976 Inch | 101 Millimeter
