VP544-5DZ1-03N-M-X538 https://www.bdiexpress.com/medias/INDSMCVALVEX-VP544-D-02-300x300.jpg?context=bWFzdGVyfHJvb3R8MjIzODJ8aW1hZ2UvanBlZ3xhR1E1TDJoak1DOHhNRFl3TmpNMk16VTNORE13TWk5SlRrUlRUVU5XUVV4V1JWaGZWbEExTkRSZlJGOHdNbDh6TURCNE16QXdMbXB3Wnd8NmFmMzRlNzQxMjExMDlhMjU3N2VmYmRjZGQzYjhiZGU5NGVjMjUwYTNkOTQ4ZTljNWZlNjVlYWQwNjNhYTRjOA
19385391 Hydraulic and Pneumatic Valves

SMC SMC

VP544-5DZ1-03N-M-X538

Description

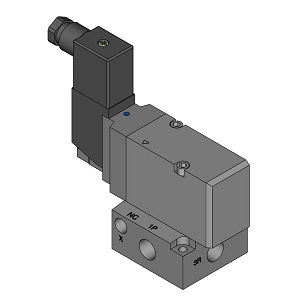

VP544-5DZ1-03N-M-X538 SOLENOID VALVE ; 3 PORT 3 WAY/2 POSITION 24VDC

Poppet Valve; 3/8" FNPT Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

VP544-5DZ1-03N-M-X538

BDI #
19385391

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

832.3945 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 832.39 / each BDIExpress
QTY

Inventory

Total: 4

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.475
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
30 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2 Cv Factor | Base Mounted | Internal Pilot | Standard | Non Locking Push | DIN Terminal With Connector | With Light and Surge Voltage Suppressor
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.87744
Long Description
Poppet Valve; 3/8" FNPT Port; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
4.136 Inch | 105.05 Millimeter
Overall Length
8.89 Inch | 225.8 Millimeter
Overall Width
3.602 Inch | 91.5 Millimeter
