VP742R-5YZD1-04TA https://www.bdiexpress.com/medias/MFRSMCVALVEX-25711699-300x300.jpg?context=bWFzdGVyfHJvb3R8NTg4MnxpbWFnZS9qcGVnfGFHSTFMMmczT0M4eE1EazBOalkwT0Rjd016QXdOaTlOUmxKVFRVTldRVXhXUlZoZk1qVTNNVEUyT1RsZk16QXdlRE13TUM1cWNHY3wyMTExZGQ4YzhiNmNkNTlhN2JhZjg4NDNlNDQ1MTVkMTZmZWFmZjk5MmM5MzM5YjRhMmUxMDNhNjM1MDhhZjc3
25711699 Hydraulic and Pneumatic Valves

SMC SMC

VP742R-5YZD1-04TA

Description

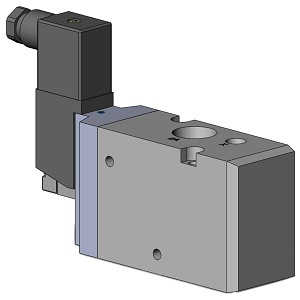

VP742R-5YZD1-04TA SOLENOID VALVE ; 3-PORT POPPET TYPE

Poppet Solenoid Valve; 1/2" FNPTF; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 50 To 122 Deg F; Rubber Seal; Aluminum

Part #

VP742R-5YZD1-04TA

BDI #
25711699

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

175.2 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 175.20 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/2" FNPTF
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
-15 To 102 PSI
Operating Temperature Range
50 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Inch
Other Features
3.6 - 3.7 Cv Factor | Body Ported | External Pilot | Standard | DIN Terminal With Connector | With Light and Surge Voltage Suppressor | Push Turn Locking Slotted
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.10893
Long Description
Poppet Solenoid Valve; 1/2" FNPTF; 3 Port | 3 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 50 To 122 Deg F; Rubber Seal; Aluminum
Overall Height
4.055 Inch | 103 Millimeter
Overall Length
6.417 Inch | 163 Millimeter
Overall Width
1.575 Inch | 40 Millimeter
