VQ1100N-51 https://www.bdiexpress.com/medias/INDSMCVALVEX-VQ1100-300x300.jpg?context=bWFzdGVyfHJvb3R8MjMwMzF8aW1hZ2UvanBlZ3xhRGcwTDJoa01TOHhNRFl3TmpNM05qWTRNVFV3TWk5SlRrUlRUVU5XUVV4V1JWaGZWbEV4TVRBd1h6TXdNSGd6TURBdWFuQm58NGRmMmYxZDhlYmY5YWJhZTNjOTAyNWQ5MWUyODlkYjBjMTQzNWFhOTRmY2IyZDhkNmNlZmYwNzEwNDNmNzE4Mg
17875595 Hydraulic and Pneumatic Valves

SMC SMC

VQ1100N-51

Description

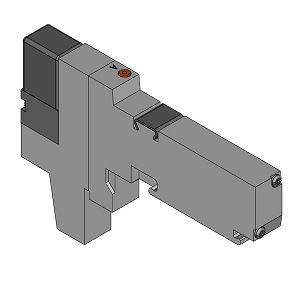

VQ1100N-51 SOLENOID VALVE ; 5 PORT 4 WAY/2 POSITION 24VDC

Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Metal Seal; Zinc

Part #

VQ1100N-51

BDI #
17875595

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

94.17 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 94.17 / each BDIExpress
QTY

Inventory

Total: 16

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.096
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
15 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Metal
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.16 - 0.18 Cv Factor | Negative Common | Light and Surge Voltage Suppressor | Non Locking Push Manual Override | Dust Protected
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.14771
Long Description
Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 102 PSI; 14 To 122 Deg F; Metal Seal; Zinc
Overall Height
1.567 Inch | 39.8 Millimeter
Overall Width
0.386 Inch | 9.8 Millimeter
Overall Length
3.331 Inch | 84.6 Millimeter
