VX212AZ1SGXNB https://www.bdiexpress.com/medias/INDSMCVALVEX-VX212-C-WOB-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8Njk4NXxpbWFnZS9qcGVnfGFHSmhMMmcxTlM4eE1Ea3hNVGMxTXpJME1EWXdOaTlKVGtSVFRVTldRVXhXUlZoZlZsZ3lNVEpmUTE5WFQwSmZRbEpUWHpNd01IZ3pNREF1YW5Cbnw4NmRmNjlmMDQzMWY5MmYxOTcxYWJkMmY1NzFjZDUxODcwYjk4NGMzYzdhZjg0YzEwY2ZkY2IzNTg3YTAyN2Jk
25758919 Hydraulic and Pneumatic Valves

SMC SMC

VX212AZ1SGXNB

Description

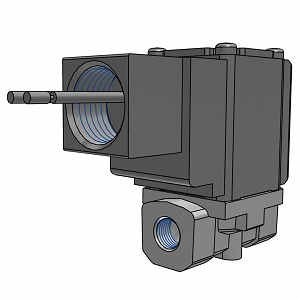

VX212AZ1SGXNB 2 PORT VALVE (SMARTCATALOG)

Poppet Solenoid Valve; 1/8" NPT; 2 Port | 2 Way; 2 Position; 12 VDC; Hydraulic; Solenoid | Spring Return; 145 PSI; 34 To 140 Deg F; Viton Seal; Brass

Part #

VX212AZ1SGXNB

BDI #
25758919

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

36.3693 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 36.37 / each BDIExpress
QTY

Inventory

Total: 74

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / gram
310
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/8" NPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
12 VDC
Media
Hydraulic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Viton
Body Material
Brass
Inch - Metric
Inch
Other Features
0.23 Cv Factor | 2MM Orifice Size | Water Fluid | Normally Closed | Class B | Conduit with Surge Voltage Suppressor | Size 1
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.683
Long Description
Poppet Solenoid Valve; 1/8" NPT; 2 Port | 2 Way; 2 Position; 12 VDC; Hydraulic; Solenoid | Spring Return; 145 PSI; 34 To 140 Deg F; Viton Seal; Brass
Overall Length
2.657 Inch | 67.5 Millimeter
Overall Width
1.181 Inch | 30 Millimeter
Overall Height
2.402 Inch | 61 Millimeter
