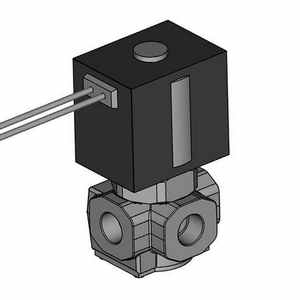

VX3114-01N-BGR1 https://www.bdiexpress.com/medias/INDSMCVALVEX-VX3-G-NS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjIwN3xpbWFnZS9qcGVnfGFERm1MMmhrTmk4eE1EYzNNREF5T0RRMk1qRXhNQzlKVGtSVFRVTldRVXhXUlZoZlZsZ3pYMGRmVGxOZk16QXdlRE13TUM1cWNHY3wzNmI3M2YxMzAwYmQ5MmZiOGMwYjE4MWRkM2E4OWJkNDljZjZjNGNjNTM5Yzg2MTVlODJkOGNjNzZmNjVhZGNi
25782323 Hydraulic and Pneumatic Valves

SMC SMC

VX3114-01N-BGR1

Description

VX3114-01N-BGR1 VALVE, MEDIA, AC24V (SMARTCATALOG)

Valve; Solenoid; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24 VAC; Solenoid/Spring Return; 102 PSI; Air -14 To 140 Deg F/Water 34 To 140 Deg F; Buna-N Seal; Brass

Part #

VX3114-01N-BGR1

BDI #
25782323

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

39.4799 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 39.48 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Poppet | Solenoid
Port Type
1/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
0 To 102 PSI
Operating Temperature Range
Air -14 To 140 Deg F | Water 34 To 140 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.08 Cv Factor | 1.5MM Orifice Size | Air - Water Fluid | Common Open | Built-In Full Wave Rectifier | Grommet | Class B | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.83776
Long Description
Valve; Solenoid; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24 VAC; Solenoid/Spring Return; 102 PSI; Air -14 To 140 Deg F/Water 34 To 140 Deg F; Buna-N Seal; Brass
Overall Width
1.299 Inch | 33 Millimeter
Overall Length
1.949 Inch | 49.5 Millimeter
Overall Height
3.012 Inch | 76.5 Millimeter
