VXZ252JZ2AH https://www.bdiexpress.com/medias/MFRSMCVALVEX-25642482-300x300.jpg?context=bWFzdGVyfHJvb3R8OTg2NHxpbWFnZS9qcGVnfGFEa3pMMmd3Tmk4eE1Ea3dPVGt6TlRNM01ESTNNQzlOUmxKVFRVTldRVXhXUlZoZk1qVTJOREkwT0RKZk16QXdlRE13TUM1cWNHY3w2YTI3ZjY4NjJhNjY0OTA0NTAwZGE4NTE5MzE0MTA1YzM5OWFlYjg0ODVlMTQ0MDI5YTJiMTU4MjY4ZmQzOTFi
25642482 Hydraulic and Pneumatic Valves

SMC SMC

VXZ252JZ2AH

Description

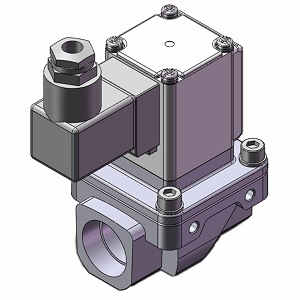

VXZ252JZ2AH, PILOT OP 2 PORT SOLENOID VALVE, (N.C.) (SMARTCATALOG)

Solenoid Valve; 3/4" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid - Air Pilot | Spring Return; 145 PSI; 34 To 140 Deg F; Viton Seal; Stainless Steel

Part #

VXZ252JZ2AH

BDI #
25642482

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

373.375 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 373.38 / each BDIExpress
QTY

Inventory

Total: 19

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
1.13
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
3/4" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Spring Return
Voltage
24 VDC
Media
Hydraulic
Maximum Pressure
145 PSI
Operating Pressure Range
0 To 145 PSI
Operating Temperature Range
34 To 140 Deg F
Seal Type
Viton
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
9.2 Cv Factor | 20MM Orifice Size | Water Fluid | Zero Differential Pressure | Normally Closed | Oil Free | DIN Terminal With Surge Voltage Suppressor | Class B | With Light
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.20
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
2.491
Long Description
Solenoid Valve; 3/4" RC; 2 Port | 2 Way; 2 Position; 24 VDC; Hydraulic; Solenoid - Air Pilot | Spring Return; 145 PSI; 34 To 140 Deg F; Viton Seal; Stainless Steel
Overall Height
5.079 Inch | 129 Millimeter
Overall Length
4.016 Inch | 102 Millimeter
Overall Width
2.441 Inch | 62 Millimeter
