WPSC8238T405AC240/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8238T402-WPSC-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjkyMXxpbWFnZS9qcGVnfGFEUTRMMmd5WlM4eE1EYzNNRE13TWpJek9EYzFNQzlKVGtSQlUxWldRVXhXUlZoZk9ESXpPRlEwTURKZlYxQlRRMTlDVWxOZk16QXdlRE13TUM1cWNHY3xiOTljZjE4ZTc4MmExM2FiYjM1M2FkNmVlMmExMzE1NjYyZDlkZDQ5NTk3NTk1NTAxNGUzMjBkNGZkNmNmNzNk
20715768 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

WPSC8238T405AC240/60

Description

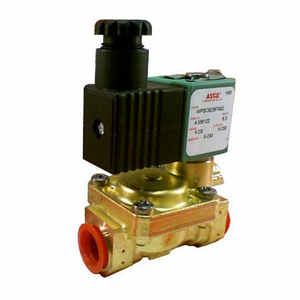

WPSC8238T405AC240/60 SOLENOID VALVE

Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 240/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 230 PSI; 32 To 195 Deg F; Buna-N Seal; Brass

Part #

WPSC8238T405AC240/60

BDI #
20715768

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

370.0584 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 370.06 / each
$ 370.06 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
240/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
230 PSI
Operating Pressure Range
5 To 230 PSI
Operating Temperature Range
32 To 195 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
4.45 Cv Factor | 17/32" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | Waterproof | Metal Enclosure | Class F | High Temperature | DIN Connection | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Long Description
Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 240/60 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 230 PSI; 32 To 195 Deg F; Buna-N Seal; Brass
Overall Height
3.255 Inch | 82.677 Millimeter
Overall Width
1.591 Inch | 40.411 Millimeter
Overall Length
2.598 Inch | 66 Millimeter
