SBSV-B3N3 https://www.bdiexpress.com/medias/MFRDWYXXXXXX-SRS-SBSV-B-L-300x300.jpg?context=bWFzdGVyfHJvb3R8NjM4NXxpbWFnZS9qcGVnfGFEbGtMMmc0WlM4eE1UQTFOVE14TkRneU9UTTBNaTlOUmxKRVYxbFlXRmhZV0ZoZlUxSlRYMU5DVTFaZlFsOU1Yek13TUhnek1EQXVhbkJufDM1OGVlNjgxMTY2MmYzZDMyM2QxZjIzMWI5NGRmNmNjNTZkYTZmZDQ2NWU5Njg0NGEyZTg5M2YzNTA2MmM3ODI
29153210 Valves And Controls

DWYER INSTRUMENTS DWYER INSTRUMENTS

SBSV-B3N3

Description

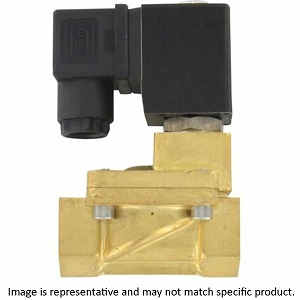

SBSV-B3N3 SOLENOID VALVE, 2-WAY BRASS 3/8" 7.25-188.5 PSI NBR SEAL (SMARTCATALOG)

Solenoid Valve; Compliance CE; Cv Factor 4.5 Gal/Min; Electrical Connection DIN 43650 A Solenoid Valve; Enclosure Ratings IP54 | NEMA Type 13; Materials Nylon; Materials Wetted Brass | Buna-N | Stainless Steel; Mounting Orientation None; Operating Pressure Range 7.3 to 188.5 PSI; Operating Temperature Max 149 Deg F; Operating Temperature Min 32 Deg F; Orifice Size 0.51 In; Power Consumption Inrush 45 VA | Holding 18 VA; Pressure Limits Up to 246.6 PSI; Process Connection Size 3/8 In FNPT; Supply Power Type AC; Supply Voltage 24 Vac; Type of Operation Normally Closed ; Applications Fluid Measurement and Control | Industrial and Manufacturing

Part #

124536-50

BDI #
29153210

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

150.38 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 150.38 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Valves And Controls
Brand
DWYER INSTRUMENTS
Manufacturer Name
DWYER INSTRUMENTS
Minimum Buy Quantity
1
Weight / US pound
0.8
Product Group - BDI
F02352
Harmonized Tariff Code
8481.80.90.05
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.dwyeromega.com
Weight / LBS
1.76
Product Detail
Solenoid Valve
Product Specification
Compliance CE; Cv Factor 4.5 Gal/Min; Electrical Connection DIN 43650 A Solenoid Valve; Enclosure Ratings IP54 | NEMA Type 13; Materials Nylon; Materials Wetted Brass | Buna-N | Stainless Steel; Mounting Orientation None; Operating Pressure Range 7.3 to 188.5 PSI; Operating Temperature Max 149 Deg F; Operating Temperature Min 32 Deg F; Orifice Size 0.51 In; Power Consumption Inrush 45 VA | Holding 18 VA; Pressure Limits Up to 246.6 PSI; Process Connection Size 3/8 In FNPT; Supply Power Type AC; Supply Voltage 24 Vac; Type of Operation Normally Closed
Long Description
Solenoid Valve; Compliance CE; Cv Factor 4.5 Gal/Min; Electrical Connection DIN 43650 A Solenoid Valve; Enclosure Ratings IP54 | NEMA Type 13; Materials Nylon; Materials Wetted Brass | Buna-N | Stainless Steel; Mounting Orientation None; Operating Pressure Range 7.3 to 188.5 PSI; Operating Temperature Max 149 Deg F; Operating Temperature Min 32 Deg F; Orifice Size 0.51 In; Power Consumption Inrush 45 VA | Holding 18 VA; Pressure Limits Up to 246.6 PSI; Process Connection Size 3/8 In FNPT; Supply Power Type AC; Supply Voltage 24 Vac; Type of Operation Normally Closed ; Applications Fluid Measurement and Control | Industrial and Manufacturing
