321250 Miter and Bevel Gears

BROWNING BROWNING

YSM12F15HX1/2

Description

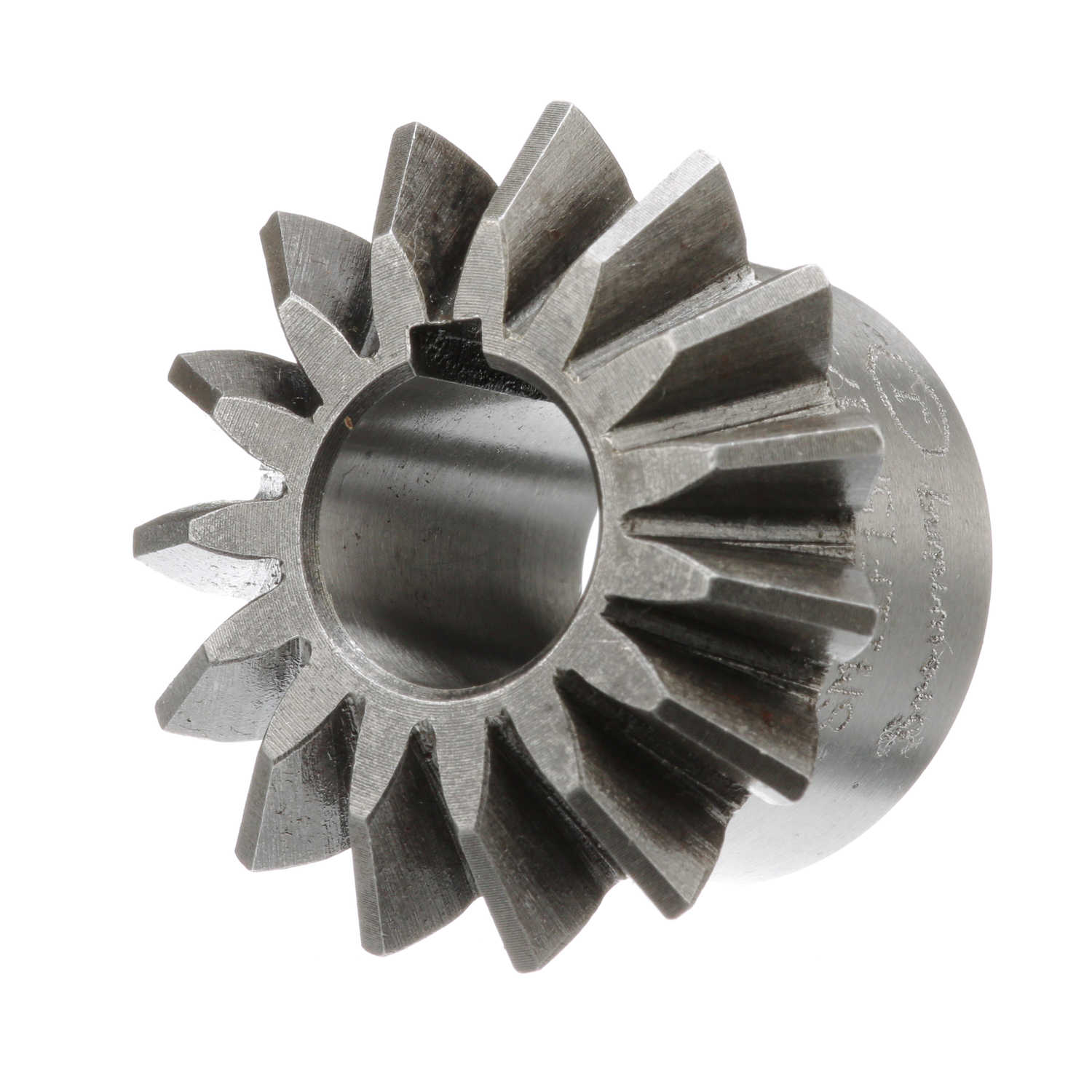

YSM12F15HX1/2 BEVEL/MITER GEAR ; STANDARD GEAR

Miter Gear; 1/5" Bore; 1-1/4" Pitch Dia; 12 DP; 0.27" Face Width; Finished Bore; 15 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1" Hub Dia; Straight Tooth; Steel

Part #

1228782

BDI #
321250

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

204.1357 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 204.14 / each
$ 413.10 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Miter and Bevel Gears
Brand
BROWNING
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31171708
Weight / Kilogram
0.05
EAN
0662289246380
Product Group - BDI
M02182
Pitch
12 DP
Mounting Method
Finished Bore
Number of Teeth
15
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Max Bore
0
Gear Style
Miter Gear
Tooth Profile
Straight Tooth
Spiral Angle
Not Applicable
Material
Steel
Direction
Not Applicable
Hardened Teeth
Yes
Inch - Metric
Inch
Other Features
Hardened Overall | Coniflex Tooth Form | With Keyway and Set Screw
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
1228782
Long Description
Miter Gear; 1/5" Bore; 1-1/4" Pitch Dia; 12 DP; 0.27" Face Width; Finished Bore; 15 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1" Hub Dia; Straight Tooth; Steel
Face Width
0.27 Inch | 6.858 Millimeter
Bore
0.5 Inch | 12.7 Millimeter
Pitch Diameter
1.25 Inch | 31.75 Millimeter
Hub Diameter
1 Inch | 25.4 Millimeter
