NP-20-IDL-BRAK https://www.bdiexpress.com/medias/INDGATTNSRXX-IDLR-BRKT-NP-300x300.jpg?context=bWFzdGVyfHJvb3R8MTM4ODN8aW1hZ2UvanBlZ3xhRE5oTDJobVpDOHhNRFF3T0RrME1UZzBOalUxT0M5SlRrUkhRVlJVVGxOU1dGaGZTVVJNVWw5Q1VrdFVYMDVRWHpNd01IZ3pNREF1YW5CbnxlM2M5NzEzMjZlMjNhZGJjMzA1NmFjY2UzOWQyNzY4NzQ0M2FjNjlhODJjY2U4NDI3ZjU1Yjk4YmI0ZDMzOGI2
Back to search results
17225405 Idler Tensioners

GATES GATES

NP-20-IDL-BRAK

Description

NP-20-IDLR-BRACKET

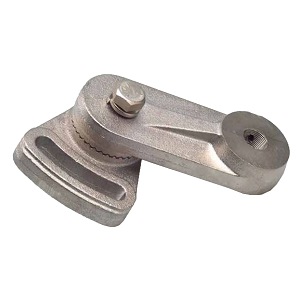

Idler Tensioner; Base Mounted; 6.94" Overall Length; 4.56" Overall Width; 2.94" Overall Height; Adjustable; Nickel Plated Cast Iron

Part #

77201021

BDI #
17225405

Details

592.02 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 592.02 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Idler Tensioners
Brand
GATES
Manufacturer Name
GATES
Minimum Buy Quantity
N/A
UNSPSC
24101700
Weight / Kilogram
5.08
EAN
0072053939996
Product Group - BDI
M02342
Product Name
Idler Bracket
Product Type
Base Mounted
Used With
30-IDLR-BUSH SF - 40-IDLR-BUSH E Idler Bushing
Mounting Bolts
0.63
Thread Size
1-14
Adjustable/Non-Adjustable
Adjustable
Material
Nickel Plated Cast Iron
Inch - Metric
Inch
Category - BDI
Idler Tensioners
Harmonized Tariff Code
8431.39.00.80
Noun
Tensioner
Keyword String
Idler
Manufacturer URL
https://www.gates.com
Manufacturer Item Number
77201021
Weight / LBS
11.2
Long Description
Idler Tensioner; Base Mounted; 6.94" Overall Length; 4.56" Overall Width; 2.94" Overall Height; Adjustable; Nickel Plated Cast Iron
Overall Width
4.56 Inch | 115.824 Millimeter
Overall Length
6.94 Inch | 176.276 Millimeter
Shaft Diameter
0 Inch | 0 Millimeter
Overall Height
2.94 Inch | 74.676 Millimeter
