PCI
PCI
HEB50-4.4375-SS
PCI PCI
Description

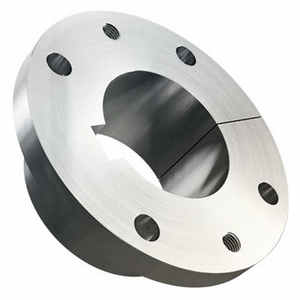

HEB50-4.4375-SS TAPERED BUSHING ; HE50 STYLE 4.4375" BORE - SS
Bushing, Shaft; 4-7/16" Bore; 9-5/8" Outside Diameter; 2.2" Length Thru Bore; HE50 Bushing Series; Keyway; HE Bushing
Part #
HEB50-4.4375-SS
BDI #
22971660
Details
4268.545848950001
USD
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/us/en/Categories/Mechanical-Power-Transmission/Retaining-&-Locking-Devices/Bushings/HEB50-4-4375-SS/p/22971660
Your Price
$ 4,268.55 / each
BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
31171605
Weight / Kilogram
18.328
EAN
0841946114549
Product Group - BDI
M00134
Bushing Series
HE50
Keyway Yes/No
Yes
Bushing Style
HE
Other Features
3IN Taper Per Foot | 300 Stainless Steel Material | 3.7IN Total Length | 8IN Bolt Circle Diameter | 6 Number Of Screws | 3/4IN Screw Size
Inch - Metric
Inch
Category - BDI
Bushing
Harmonized Tariff Code
8483.90.10.50
Noun
Bushing
Keyword String
Shaft
Manufacturer URL
https://www.pcimfg.com
Weight / LBS
40.407
Long Description
Bushing, Shaft; 4-7/16" Bore; 9-5/8" Outside Diameter; 2.2" Length Thru Bore; HE50 Bushing Series; Keyway; HE Bushing
Outside Diameter
9.625 Inch | 244.475 Millimeter
Length Thru Bore
2.2 Inch | 55.88 Millimeter
Bore
4.438 Inch | 112.725 Millimeter
