3 1/2 HG EB FF FB https://www.bdiexpress.com/medias/INDRGLXXXXXX-HG-EB-FF-FB-300x300.jpg?context=bWFzdGVyfHJvb3R8MTg3MjF8aW1hZ2UvanBlZ3xhRGRoTDJnMU55OHhNRFUyTWpJeU9ESXlOREF6TUM5SlRrUlNSMHhZV0ZoWVdGaGZTRWRmUlVKZlJrWmZSa0pmTXpBd2VETXdNQzVxY0djfGM5NjRiYTU1MWMwN2UzMTljNmRhMDAwODU0OWMxNTZkYjE3MWQwODFhMjM5ODMxMDE4NTI4MjcyOTM2MmEwMjA
27815290 Gear Couplings

KOP-FLEX COUPLINGS KOP-FLEX COUPLINGS

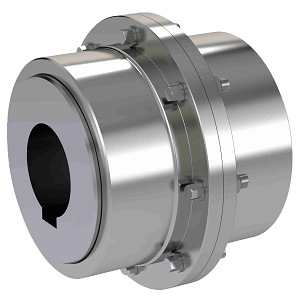

3 1/2 HG EB FF FB

Description

3 1/2 HG EB FF-FB GEAR COUPLING ; NON-RETURNABLE

Gear Coupling; 4.88" Maximum Bore Size; 11" Outside Diameter; 7" Hub Diameter; Gear Coupling; 4.19" Length Through Bore; 9.5" Bolt Circle; 123.83MM Maximum Bore Size; 2" Minimum Compatible Bore Size Flex Hub; 2" Minimum Compatible Bore Size Rigid Hub; 2" Minimum Compatible Bore Size; 6.35MM Distance Between Shaft Ends; 8.63" Overall Length; Exposed Bolt Bolt Type; Full Flex Configuration; 3.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3900 RPM Maximum Speed; 163800 In-Lb Torque Rating; Finish Bore Bore Type; 259.9 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Sleeve and Fasteners

Part #

HG2274942

BDI #
27815290

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

5694.8494 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 5,694.85 / each
$ 5,694.85 / each BDIExpress
QTY

Inventory

Total: 1

Category
Gear Couplings
Brand
KOP-FLEX COUPLINGS
Manufacturer Name
REGAL REXNORD https://www.regalrexnord.com
Minimum Buy Quantity
N/A
UNSPSC
31163002
Weight / Kilogram
49.895
EAN
0662384007275
Product Group - BDI
M02302
Noun
Coupling
Keyword String
Gear
Manufacturer URL
https://www.rexnord.com
Manufacturer Item Number
HG2274942
Product Detail
Gear Coupling
Product Specification
4.88" Maximum Bore Size; 11" Outside Diameter; 7" Hub Diameter; Gear Coupling; 4.19" Length Through Bore; 9.5" Bolt Circle; 123.83MM Maximum Bore Size; 2" Minimum Compatible Bore Size Flex Hub; 2" Minimum Compatible Bore Size Rigid Hub; 2" Minimum Compatible Bore Size; 6.35MM Distance Between Shaft Ends; 8.63" Overall Length; Exposed Bolt Bolt Type; Full Flex Configuration; 3.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3900 RPM Maximum Speed; 163800 In-Lb Torque Rating; Finish Bore Bore Type; 259.9 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Sleeve and Fasteners
Long Description
Gear Coupling; 4.88" Maximum Bore Size; 11" Outside Diameter; 7" Hub Diameter; Gear Coupling; 4.19" Length Through Bore; 9.5" Bolt Circle; 123.83MM Maximum Bore Size; 2" Minimum Compatible Bore Size Flex Hub; 2" Minimum Compatible Bore Size Rigid Hub; 2" Minimum Compatible Bore Size; 6.35MM Distance Between Shaft Ends; 8.63" Overall Length; Exposed Bolt Bolt Type; Full Flex Configuration; 3.5 Coupling Size or Series; Carbon Steel Material; Series H PLUS Model Name; Flanged Sleeve Type; 3900 RPM Maximum Speed; 163800 In-Lb Torque Rating; Finish Bore Bore Type; 259.9 HP Rating; Crown Faced, Involute Tooth Profile; Includes Hub, Sleeve and Fasteners
