Back to search results
21458601 Inline Shafts

STOBER DRIVES STOBER DRIVES

C302N005MR250/180

Description

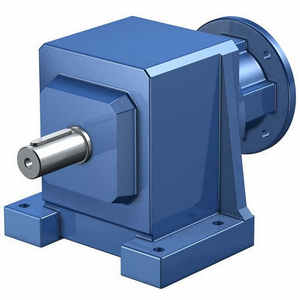

C302N005MR250/180 ; SPEED REDUCER

Speed Reducer; Inline Type; 0.5:1 Nominal Ratio; 182/184TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; C Series; Base Mounted; Stainless Steel; 3100In-Lbs Output Torque

Part #

C302N005MR250/180

BDI #
21458601

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Inline Shafts
Brand
STOBER DRIVES
Manufacturer Name
STOBER DRIVES
Minimum Buy Quantity
N/A
UNSPSC
26111524
Weight / Kilogram
22.23
Product Group - BDI
M02282
Tradename
MGS
Reducer Type
Inline
Nominal Ratio
0.5:1
Mounting Frame
182/184TC
Input Type
C-Face Quill
Output Type
Shaft
Motor Included
No
Nominal Max Input Rating
11.01HP
Nominal Max Output RPM
345
Mounting Method
Base Mounted
Gearing
Helical
Manufacturer's Series
C
Mounting Bolt Pattern footprint
Rectangle
Maximum Overhung load value And um
623Lbs
Base Included
Yes
Housing Material And Finish
Stainless Steel
Output RPM at 1750 RPM Input
345
Output Torque value plus um
3100In-Lbs
Fan Cooling
No
Other Features
Double Reduction
Inch - Metric
Inch
Category - BDI
Reducers Inline Shaft
Harmonized Tariff Code
8483.40.70.00
Noun
Reducer
Keyword String
Speed Inline
Manufacturer URL
https://www.stober.com
Weight / LBS
49
Long Description
Speed Reducer; Inline Type; 0.5:1 Nominal Ratio; 182/184TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; C Series; Base Mounted; Stainless Steel; 3100In-Lbs Output Torque
Base to Center of Output Shaft
5.12 Inch | 130.048 Millimeter
Overall Width
8.46 Inch | 214.884 Millimeter
Overall Length
14.88 Inch | 377.952 Millimeter
Output Shaft Length
2.36 Inch | 59.944 Millimeter
Overall Height
9.62 Inch | 244.348 Millimeter
Output Shaft Diameter
1.25 Inch | 31.75 Millimeter
