NILOS
NILOS
DL 24-16
NILOS NILOS
描述
NILOS DL 24-16

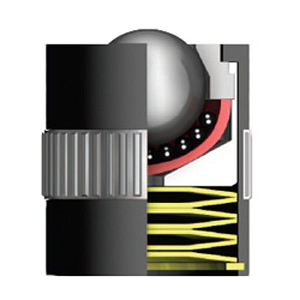

Ball Transfer Unit; Tolerance Ring; 30MM Base to Ball Height; 23.9MM Housing Diameter; 12.7MM Ball Outside Diameter; Stainless Steel Ball Material; 88 Lbs Max Load; Not Applicable Flange Size; 28.5MM Housing Height; Steel Housing Material
制造商部件号
DL 24-16
BDI部件号
22777480
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%89%A9%E6%96%99%E6%90%AC%E8%BF%90/%E8%BE%93%E9%80%81%E6%9C%BA%E7%BB%84%E4%BB%B6/%E7%90%83%E4%BC%A0%E5%8A%A8%E5%8D%95%E5%85%83/DL-24-16/p/22777480
单价(不含税)
请求报价
BDIExpress
|
|||
产品详细信息
分类
最低订购量
无
EAN条码
7316574246427
重量 / Kilogram
0.07
Product Group - BDI
M06110
产品名称
Ball Transfer Unit
连接类型
Tolerance Ring
滚珠材料
Stainless Steel
最大载荷
88 Lbs
法兰尺寸（如应用）
Not Applicable
壳体材料
Steel
其它特点
Black Oxide Coated Housing | Die Lifter
英寸 - 公制
Metric
类别 - BDI
Conveyor Components Ball Transfer Units
名称
Ball Transfer Unit
制造商内部编号
M/5906163
重量/磅
0.163
详细描述
Ball Transfer Unit; Tolerance Ring; 30MM Base to Ball Height; 23.9MM Housing Diameter; 12.7MM Ball Outside Diameter; Stainless Steel Ball Material; 88 Lbs Max Load; Not Applicable Flange Size; 28.5MM Housing Height; Steel Housing Material
壳体高度
1.122 英寸 | 28.5 毫米
底座到滚珠高度
1.181 英寸 | 30 毫米
总高
1.181 英寸 | 30 毫米
滚珠外径
0.5 英寸 | 12.7 毫米
壳体直径
0.941 英寸 | 23.9 毫米
