625732 Screw Conveyor Hangers

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

9CH2164-O

Description

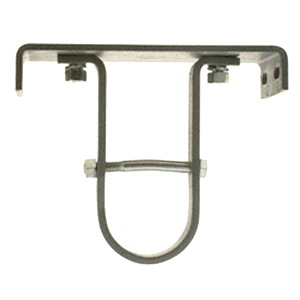

9CH2164-O BEARING HANGER ; 9" X 2" 216 -OIL

Hanger; Bracket; 2" Shaft Diameter; 6-1/8" Mounting Flange to Center of Bearing; 216 Series; 10" Length; 4-1/2" Width; No Bearing Included; Use CHB2164; 7/16 X 1-1/16 Inch Mounting Hole

Part #

9CH2164-O

BDI #
625732

Details

Request A Price HUF 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Screw Conveyor Hangers
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
UNSPSC
24101728
Weight / Kilogram
4.08
EAN
0697950124841
Product Group - BDI
M00134
Product Name
Hanger
Product Type
Bracket
Series
216
Bearing Included Yes/No
No
Bearing Number
CHB2164
Mounting Slot-Size
7/16 X 1-1/16 Inch
Other Features
9 Inch Conveyor Dia | Hard Iron or Bronze Bearing | Heavy Duty | Flush Mounted Inside the Trough | With Oil Pipe
Inch - Metric
Inch
Category - BDI
Conveyor Components Hangers
Harmonized Tariff Code
8431.39.00.10
Noun
Mount
Keyword String
Conveyor
Manufacturer URL
http://www.martinsprocket.com
Manufacturer Item Number
9CH2164-O
Manufacturer Internal Number
9CH2164-O
Weight / LBS
9
Long Description
Hanger; Bracket; 2" Shaft Diameter; 6-1/8" Mounting Flange to Center of Bearing; 216 Series; 10" Length; 4-1/2" Width; No Bearing Included; Use CHB2164; 7/16 X 1-1/16 Inch Mounting Hole
Length
10 Inch | 254 Millimeter
Shaft Diameter
2 Inch | 50.8 Millimeter
Width
4.5 Inch | 114.3 Millimeter
Mounting Flange to Center of Bearing
6.125 Inch | 155.575 Millimeter
