556456
AC Motors
LEESON
LEESON
192206.00
LEESON LEESON
Description

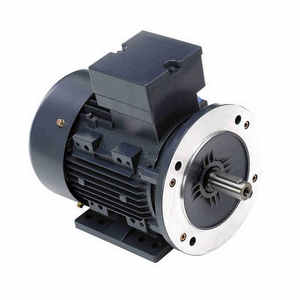

192206.00 IEC METRIC MOTOR ; POR 2HP 230/460VAC 5.4/2.7A 3PH
AC Motor; General Purpose; 2HP; D90LD Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; IEC Frame Profile; Three Phase; 60 Hertz; B3 Face | Rigid; Base; 24MM Shaft Diameter; 90MM Base to Center of Shaft; 325.882MM Overall Length; 86.5% Efficiency Full Load
Part #
192206.00
BDI #
556456
Details
Request A Price
CAD
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/ca/en/Categories/Electrical-Power-Transmission/Electric-Motors/AC-Motors/192206-00/p/556456
Your Price
Request A Price
BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
26101112
Weight / Kilogram
20.87
EAN
0691720246924
Product Group - BDI
M04104
Horse Power
2HP
Frame Size
D90LD
Hertz
60
Sync RPM
1800
Voltage
230/460
Current
AC
Phase
Three Phase
Enclosure
TEFC
Frame Profile
IEC
Mounting Method
B3 Face | Rigid
Base to Center Height - Millimeter
89.992
Base
Yes
Efficiency Full Load
86.5
Inch - Metric
Metric
Other Features
Current Rating 5.4/2.7 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.51.60.40
Noun
Motor
Keyword String
Alternating Current General Purpose
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
192206.00
Manufacturer Internal Number
192206.00
Weight / LBS
46
Long Description
AC Motor; General Purpose; 2HP; D90LD Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; IEC Frame Profile; Three Phase; 60 Hertz; B3 Face | Rigid; Base; 24MM Shaft Diameter; 90MM Base to Center of Shaft; 325.882MM Overall Length; 86.5% Efficiency Full Load
Shaft Diameter
0.945 Inch | 24 Millimeter
Base to Center of Shaft
3.543 Inch | 90 Millimeter
Overall Length
12.83 Inch | 325.882 Millimeter
