LEESON G150261.22

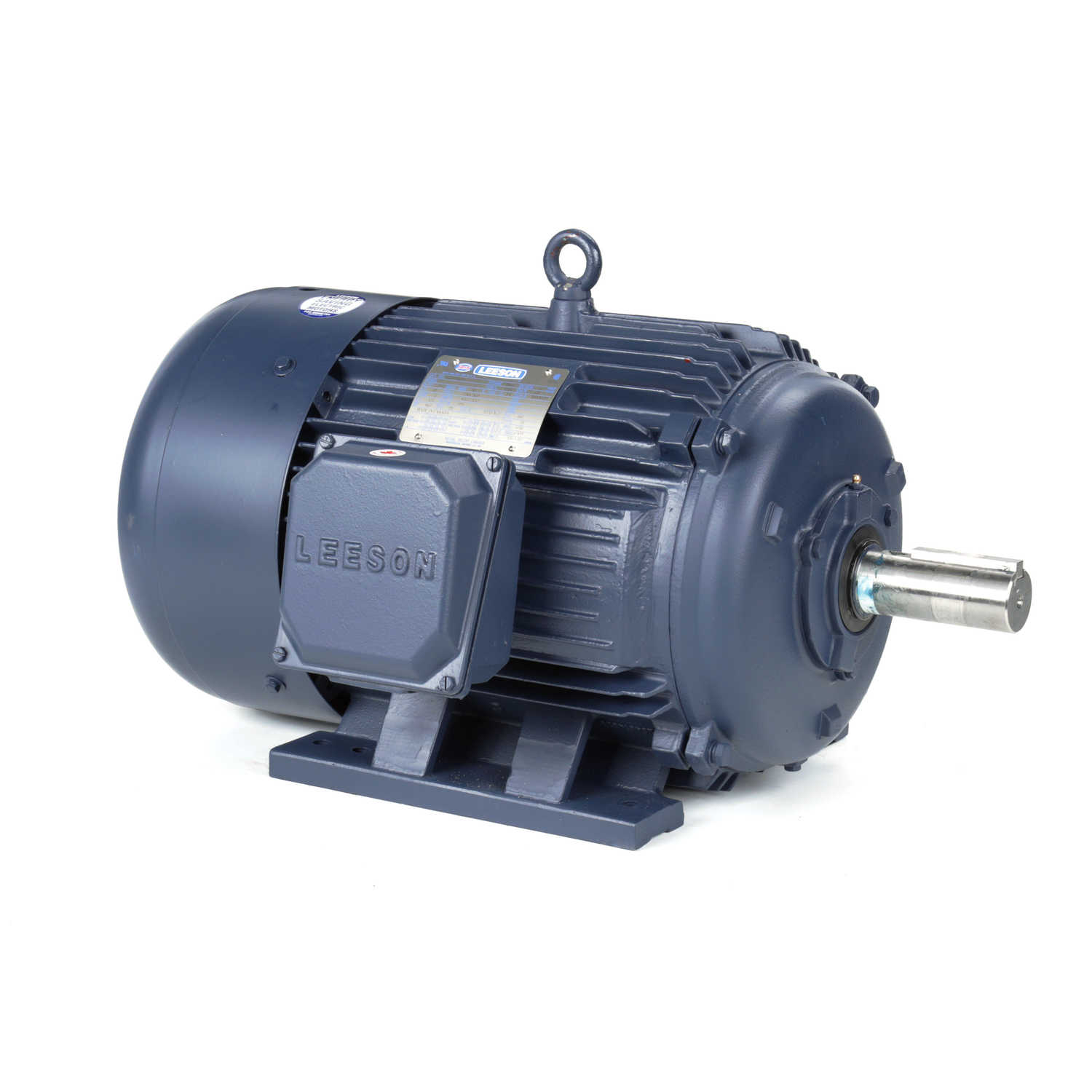

AC Motor; General Purpose; 15HP; 286T Frame Size; 900 Sync RPM; 208-230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 1-7/8" Shaft Diameter; 7" Base to Center of Shaft; 27.83" Overall Length; 91% Efficiency Full Load
制造商部件号
G150261.22
BDI部件号
20180888
详情
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/cn/zh/Categories/%E7%94%B5%E5%8A%9B%E4%BC%A0%E5%8A%A8/%E7%94%B5%E5%8A%A8%E9%A9%AC%E8%BE%BE/%E4%BA%A4%E6%B5%81%E7%94%B5%E6%9C%BA/G150261-22/p/20180888
单价(不含税)
请求报价
BDIExpress
|
产品详细信息
分类
最低订购量
无
EAN条码
0691720151969
重量 / Kilogram
0.005
Product Group - BDI
M04104
马力
15HP
外形规格
286T
赫兹
60
同步RPM
900
电压
208-230/460
电流
AC
相位
Three Phase
外壳
TEFC
外形形式
NEMA
安装形式
Rigid
底座到中心高度 - 毫米
177.8
底座
Yes
满负载效率
91
英寸 - 公制
Inch
其它特点
Current Rating 40/20 Ampere | 8 Poles
类别 - BDI
AC Motor
名称
Motor
关键字串
Alternating Current General Purpose
制造商货号
G150261.22
制造商内部编号
G150261.22
重量/磅
480
详细描述
AC Motor; General Purpose; 15HP; 286T Frame Size; 900 Sync RPM; 208-230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 1-7/8" Shaft Diameter; 7" Base to Center of Shaft; 27.83" Overall Length; 91% Efficiency Full Load
轴直径
1.875 英寸 | 47.625 毫米
全长
27.83 英寸 | 706.882 毫米
底座到轴心
7 英寸 | 177.8毫米
