Back to search results
855085 Round Rail Assemblies

THOMSON THOMSON

1BA16AJ0L36

Description

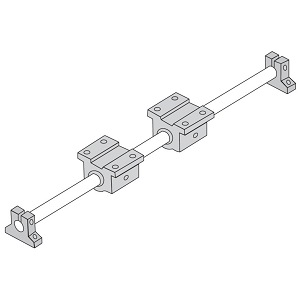

1BA16AJ0L36 RND SHAFT LINEAR GUIDE RAIL ; POR 1BA END SPRT STD 2 PILLOW BLOCK

Round Rail Assembly; End Supported; 1" Shaft Diameter; 36" Shaft Length; 3-1/4" Support Rail Width; 1-1/2" Base to Shaft Center; SSPB-16-XS; 2 Bearing Block/Carriages; Bearing Block/Carriage: 2.81" Length; 3-1/4" Width; 2.19" Height

Part #

1BA16AJ0L36

BDI #
855085

Details

Request A Price HUF 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Request a quotation

Category
Round Rail Assemblies
Brand
THOMSON
Manufacturer Name
THOMSON INDUSTRIES
Minimum Buy Quantity
N/A
UNSPSC
23153000
Weight / Kilogram
5.67
Product Group - BDI
L00124
Product Name
Round Rail Assembly
Product Type
End Supported
Bearing Block/Carriage Number
SSPB-16-XS
Number of Bearing Blocks/Carriages
2
End Support Part Number
SB-16-XS
Material
Aluminum Pillow Block | Iron End Support Block | Steel Shaft
Inch - Metric
Inch
Other Features
Closed Pillow Block | Fixing Hole Distance is Across Rail Axis Due to End Support | 1/4 Inch Bolt
Category - BDI
Round Rail Assemblies
Noun
Assembly
Keyword String
Round Rail Linear
Manufacturer URL
https://www.thomsonlinear.com
Manufacturer Item Number
1BA16AJ0L36
Weight / LBS
14.175
Long Description
Round Rail Assembly; End Supported; 1" Shaft Diameter; 36" Shaft Length; 3-1/4" Support Rail Width; 1-1/2" Base to Shaft Center; SSPB-16-XS; 2 Bearing Block/Carriages; Bearing Block/Carriage: 2.81" Length; 3-1/4" Width; 2.19" Height
Base to Center of Shaft
1.5 Inch | 38.1 Millimeter
Bearing Block/Carriage Width
3.25 Inch | 82.55 Millimeter
Support Rail Width
3.25 Inch | 82.55 Millimeter
Center Distance of Mounting Holes
2.5 Inch | 63.5 Millimeter
Mounting Hole Diameter
0.19 Inch | 4.826 Millimeter
Shaft Diameter
1 Inch | 25.4 Millimeter
Bearing Block/Carriage Height
2.19 Inch | 55.626 Millimeter
Shaft Length
36 Inch | 914.4 Millimeter
Bearing Block/Carriage Length
2.81 Inch | 71.374 Millimeter
Stroke Length
0 Inch | 0 Millimeter
