TB-8009 https://www.bdiexpress.com/medias/INDSCEBRGXXX-TB-RASSYPR-SR-TB-BR-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY5NjN8aW1hZ2UvanBlZ3xhRFkyTDJnek5pOHhNRFV3TnpVMU56YzVOemt4T0M5SlRrUlRRMFZDVWtkWVdGaGZWRUpmVWtGVFUxbFFVbDlUVWw5VVFsOUNVbDh6TURCNE16QXdMbXB3Wnd8OTU3NWY4ODcwMzA3NjE0NGI0NTA5YTExYmY0ODJlNTQxZmZiYjVkMTFjYmFmM2E0NzBmMjBmNDljZTIzZTcxMA

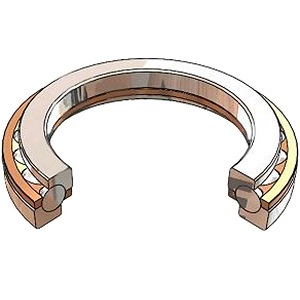

26335892 Thrust Ball Bearing

SCHEERER BEARING SCHEERER BEARING

TB-8009

Description

TB-8009 BALL THRUST BEARING ; 20.125IN ID 24.75IN OD ANG CONTACT

Thrust Ball Bearing; 20-1/8" Bore; 24-3/4" Outside Diameter; 2-5/8" Height; Single Direction; Not Banded; Brass Cage; ABEC 1 | ISO P0 Precision

Part #

TB-8009

BDI #
26335892

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

8248.7344 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 8,248.73 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Thrust Ball Bearing
Brand
SCHEERER BEARING
Manufacturer Name
SCHEERER BEARING
Minimum Buy Quantity
N/A
UNSPSC
31171507
Weight / Kilogram
48.535
Product Group - BDI
B04270
Rolling Element
Ball Bearing
Thrust Bearing
Yes
Single or Double Direction
Single Direction
Banded
No
Cage Material
Brass
Precision Class
ABEC 1 | ISO P0
Component Description
Roller Assembly Plus Raceways
Other Features
Single Row
Inch - Metric
Inch
Category - BDI
Thrust Ball Bearings
Harmonized Tariff Code
8482.10.50.08
Noun
Bearing
Keyword String
Ball Thrust
Manufacturer URL
https://www.scheererbearing.com
Weight / LBS
107
Long Description
Thrust Ball Bearing; 20-1/8" Bore; 24-3/4" Outside Diameter; 2-5/8" Height; Single Direction; Not Banded; Brass Cage; ABEC 1 | ISO P0 Precision
Outside Diameter
24.75 Inch | 628.65 Millimeter
Bore 1
20.125 Inch | 511.175 Millimeter
Bore 2
0 Inch | 0 Millimeter
Height
2.625 Inch | 66.675 Millimeter
