113119 Flange Block Bearings

AMI BEARINGS AMI BEARINGS

UCME209

Description

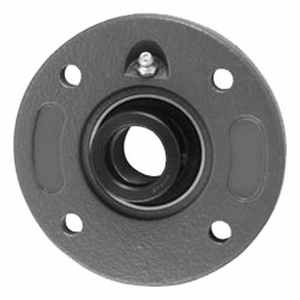

UCME209 FLANGED BLOCK BEARING ; CARTRIDGE 45MM ID

Flange Block Bearing; 4 Bolt Round Flange Cartridge; 45MM Bore; 132MM Bolt Circle Diameter; 91.9MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal

Part #

UCME209

BDI #
113119

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

229.1235 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 229.12 / each BDIExpress
QTY

Inventory

Total: 6

Category
Flange Block Bearings
Brand
AMI BEARINGS
Manufacturer Name
ASAHI BEARINGS
Minimum Buy Quantity
N/A
UNSPSC
31171501
Weight / Kilogram
1.969
EAN
0808250327270
Product Group - BDI
M06110
Number of Mounting Holes
4
Mounting Method
Set Screw
Housing Style
4 Bolt Round Flange Cartridge
Rolling Element
Ball Bearing
Housing Material
Cast Iron
Expansion / Non-expansion
Non-Expansion
Mounting Bolts
12 Millimeter
Relubricatable
Yes
Insert Part Number
UC209
Seals
Contact
Housing Configuration
1 Piece Solid
Pilot Configuration
With Pilot
Inch - Metric
Metric
Other Features
Single Row | Normal Duty
Category - BDI
Flange Block
Harmonized Tariff Code
8483.20.40.40
Noun
Bearing
Keyword String
Flanged
Manufacturer URL
https://www.amibearings.com
Weight / LBS
4.4
Long Description
Flange Block Bearing; 4 Bolt Round Flange Cartridge; 45MM Bore; 132MM Bolt Circle Diameter; 91.9MM Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
Cartridge Pilot Diameter
4.134 Inch | 105 Millimeter
Bore
1.772 Inch | 45 Millimeter
Cartridge Pilot Depth
0.512 Inch | 13 Millimeter
Nominal Bolt Circle Diameter Round
5.2 Inch | 132 Millimeter
Length Thru Bore
1.937 Inch | 49.2 Millimeter
Bolt Spacing
3.6 Inch | 91.9 Millimeter
