8210G056AC240/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8210G056-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NjY0MTd8aW1hZ2UvanBlZ3xhRFJpTDJnMk9TOHhNRGd3TkRjME5EQXlPREU1TUM5SlRrUkJVMVpXUVV4V1JWaGZPREl4TUVjd05UWmZRbEpUWHpNd01IZ3pNREF1YW5Cbnw3YmUxZWZhNDcxZjRiYmJmZTlhZTY4ZjkzNDA0MGZiZjQxMDQyMTM3YmM5NDZjNTMwOGMyMmNiMWU5MGU4ZDRk
20691952 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8210G056AC240/60

Description

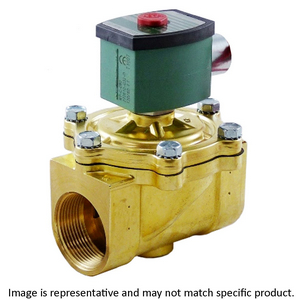

8210G056AC240/60D SOLENOID VALVE ; 1-1/2"X1-1/4" 2NC BRASS 16.1W

Valve; 1-1/2" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 150 PSI/Light Oil - Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

8210G056AC240/60D

BDI #
20691952

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1138.768 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,138.77 / each
$ 1,138.77 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1-1/2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
240/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Inert Gas 150 PSI | Light Oil - Water 125 PSI
Operating Pressure Range
Air - Inert Gas 0 To 150 PSI | Light Oil - Water 0 To 125 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
22.5 Cv Factor | 1-1/4" Orifice Size | Normally Closed | Air - Inert Gas - Water - Light Oil Fluid
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Weight / LBS
5.75
Long Description
Valve; 1-1/2" FNPT Port; 2 Port - 2 Way; 2 Position; Hydraulic - Pneumatic; 240/60 VAC; Solenoid - Air Pilot/Air Pilot - Spring Return; Air - Inert Gas 150 PSI/Light Oil - Water 125 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Height
5.915 Inch | 150.241 Millimeter
Overall Length
4.652 Inch | 118.161 Millimeter
Overall Width
3.899 Inch | 99.035 Millimeter
