8320G041AC24/60 https://www.bdiexpress.com/medias/INDASVVALVEX-8320G001-SS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTI2MXxpbWFnZS9qcGVnfGFERTJMMmhoWWk4eE1EYzNNVEV3TkRjNU1qWXdOaTlKVGtSQlUxWldRVXhXUlZoZk9ETXlNRWN3TURGZlUxTmZNekF3ZURNd01DNXFjR2N8N2I5MTJjZDJjNmY1M2U0NTZjNTAyOGVjZjIxMjZkNjZjMTNlZWM2NTQyNjk1Mzc0ODJhMzgwMjU4ZDU4YmE3Mw
20696532 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8320G041AC24/60

Description

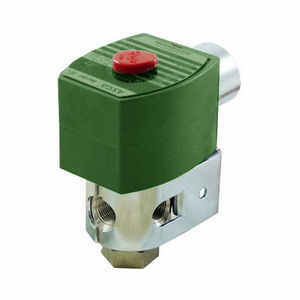

8320G041AC24/60 SOLENOID VALVE ; 1/8" X 1/16" 3U SS 9.1/F W

Valve; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24/60 VAC; Solenoid/Spring Return; 100 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel

Part #

8320G041AC24/60D

BDI #
20696532

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

334.86 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 334.86 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24/60 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
100 PSI
Operating Pressure Range
0 To 100 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Stainless Steel
Inch - Metric
Inch
Other Features
0.09 Cv Factor | 1/16" Orifice Size | Universal Operation | Air - Inert Gas - Water - Light Oil Fluid | 457MM Lead Length
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; 1/8" FNPT Port; 3 Port - 3 Way; 2 Position; Hydraulic - Pneumatic; 24/60 VAC; Solenoid/Spring Return; 100 PSI; 32 To 180 Deg F; Buna-N Seal; Stainless Steel
Overall Height
3.15 Inch | 80 Millimeter
Overall Width
1.69 Inch | 42.926 Millimeter
Overall Length
3 Inch | 76.2 Millimeter
