HC8551G401MSDC125/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8551G401-300x300.jpg?context=bWFzdGVyfHJvb3R8ODU0NnxpbWFnZS9qcGVnfGFEVTBMMmhrTkM4eE1EYzJPRFEwT0RJMU9EQTNPQzlKVGtSQlUxWldRVXhXUlZoZk9EVTFNVWMwTURGZk16QXdlRE13TUM1cWNHY3w4NzRjMWJjNjI4Yzk0MzdlZTFkOTNmYzA0NzE4ZTg2ZTY5NmZmNzAzZWQ0ODcwZmZjNGU5MzNjNGY5N2ZmMDA3
20705678 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

HC8551G401MSDC125/DC

Description

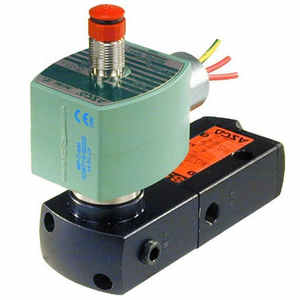

HC8551G401MSDC125/DC SOLENOID VALVE ; 1/4"X1/4" 4WAY ALUM 24.6W

Valve; Solenoid; Inlet 1/4" FNPT - Exhaust 1/8" FNPT Port; 5 Port - 4 Way; 2 Position; Pneumatic; 125 VDC; Solenoid - Air Pilot - Manual/Spring Return; 120 PSI; 32 To 120 Deg F; Buna-N Seal; Aluminum

Part #

HC8551G401MSDC125/DCD

BDI #
20705678

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

647.5816000000001 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 647.58 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Spool | Solenoid
Port Type
Inlet 1/4" FNPT | Exhaust 1/8" FNPT
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Manual | Spring Return
Voltage
125 VDC
Media
Pneumatic
Maximum Pressure
120 PSI
Operating Pressure Range
30 To 120 PSI
Operating Temperature Range
32 To 120 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.86 CV Factor | 1/4" Orifice Size | Air - Inert Gas Fluid | Class H | Battery Charging Coil | Screw Type Manual Operator | 18 Inch Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Spool Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Valve; Solenoid; Inlet 1/4" FNPT - Exhaust 1/8" FNPT Port; 5 Port - 4 Way; 2 Position; Pneumatic; 125 VDC; Solenoid - Air Pilot - Manual/Spring Return; 120 PSI; 32 To 120 Deg F; Buna-N Seal; Aluminum
Overall Width
1.951 Inch | 49.555 Millimeter
Overall Height
4.38 Inch | 111.252 Millimeter
Overall Length
6.173 Inch | 156.794 Millimeter
