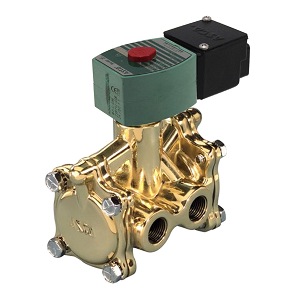

JKH8316G064EDC120/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8316G064-JKF-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MTk4Mjl8aW1hZ2UvanBlZ3xhRFF4TDJoak55OHhNRGM1TnpZNU56Y3lPRFUwTWk5SlRrUkJVMVpXUVV4V1JWaGZPRE14Tmtjd05qUmZTa3RHWDBKU1UxOHpNREI0TXpBd0xtcHdad3w4YWMzMmU1YjJhMGZhZGUwNDNlODc5YTI5ZTZjNzQ2OWU1ZWExYjAyNDFkODQ4MzIwNTdjYTFmNWE3YmMwODNj
20708006 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

JKH8316G064EDC120/DC

Description

JKH8316G064EDC120/DC PILOT VALVE

Diaphragm Valve; 1/2" FNPT Port; 3 Port | 3 Way; 2 Position; 120 VDC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 125 PSI; 32 To 120 Deg F; EPDM Seal; Brass

Part #

JKH8316G064EDC120/DC

BDI #
20708006

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1201.7 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,201.70 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0.005
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
1/2" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
10 To 125 PSI
Operating Temperature Range
32 To 120 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
3.2 Cv Factor | 5/8" Orifice Size | Normally Closed | Ambient Temperature 0 To 40 Deg C | Class H - High Temperature - Screw Terminal
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
3.9
Long Description
Diaphragm Valve; 1/2" FNPT Port; 3 Port | 3 Way; 2 Position; 120 VDC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; 125 PSI; 32 To 120 Deg F; EPDM Seal; Brass
Overall Height
5.14 Inch | 130.556 Millimeter
Overall Length
5.4 Inch | 137.16 Millimeter
Overall Width
2.76 Inch | 70.104 Millimeter
