LVA50-06-F https://www.bdiexpress.com/medias/MFRSMCVALVEX-25594699-300x300.jpg?context=bWFzdGVyfHJvb3R8NTAzNnxpbWFnZS9qcGVnfGFEWXlMMmd3Tmk4eE1EZzJNVEV6T1RRMk1ERXlOaTlOUmxKVFRVTldRVXhXUlZoZk1qVTFPVFEyT1RsZk16QXdlRE13TUM1cWNHY3wzM2I4OTFiNjNjZTBlMmUyMzU5YzIxMjIzYjRmNzk0MWY3ZGQ5YjQ1NGU5MmZiZGUwZjAyOTA1NTQzNjM5YjFi
25594699 Hydraulic and Pneumatic Valves

SMC SMC

LVA50-06-F

Description

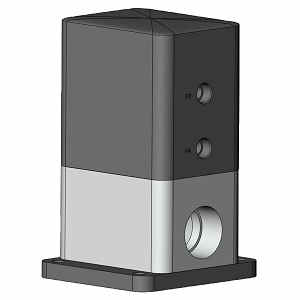

LVA50-06-F, HIGH PURITY CHEMICAL LIQUID VALVE (SMARTCATALOG)

Diaphragm Valve; 3/4" RC; 2 Port - 2 Way; 2 Position; Hydraulic; Air Pilot/Spring Return; 58 PSI; 32 To 212 Deg F; Plastic

Part #

LVA50-06-F

BDI #
25594699

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

657.0164 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 657.02 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
1
Weight / Kilogram
0.78
Product Group - BDI
F02234
Valve Type
Diaphragm
Port Type
3/4" RC
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Air Pilot | Spring Return
Voltage
Not Applicable
Media
Hydraulic
Maximum Pressure
58 PSI
Operating Pressure Range
0 To 58 PSI
Operating Temperature Range
32 To 212 Deg F
Body Material
Plastic
Inch - Metric
Inch
Other Features
6 Cv Factor | 20MM Orifice Size | Chemical Fluid | PTFE Diaphragm | 1/8" RC Pilot Port
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.50
Noun
Valve
Keyword String
Diaphragm
Manufacturer URL
https://www.smcworld.com
Weight / LBS
1.71961
Long Description
Diaphragm Valve; 3/4" RC; 2 Port - 2 Way; 2 Position; Hydraulic; Air Pilot/Spring Return; 58 PSI; 32 To 212 Deg F; Plastic
Overall Width
3.307 Inch | 84 Millimeter
Overall Height
5.079 Inch | 129 Millimeter
Overall Length
2.953 Inch | 75 Millimeter
