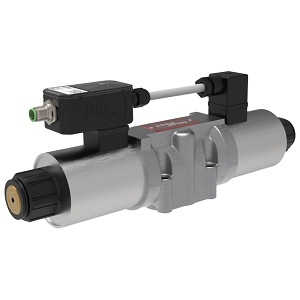

PRM6-103Y11/60-24EL7-A https://www.bdiexpress.com/medias/INDARGHYVALVE-PRM6-103EL7-300x300.jpg?context=bWFzdGVyfHJvb3R8NTU5NnxpbWFnZS9qcGVnfGFHUXhMMmhqTWk4eE1Ea3pNamt6TXpBNU9UVTFNQzlKVGtSQlVrZElXVlpCVEZaRlgxQlNUVFpmTVRBelJVdzNYek13TUhnek1EQXVhbkJufGZmMTg3ZDZlZjNjYjgwYzU0ZTliNjY5NmM2ZTMzNmI2MTFjMmQwZjI1ZmIyZTkyMTE3N2RmOWNmMmFkYmUxOWE
27572054 Hydraulic and Pneumatic Valves

ARGO-HYTOS ARGO-HYTOS

PRM6-103Y11/60-24EL7-A

Description

PRM6-103Y11/60-24EL7-A VALVE ; CONTROL

Spool Valve; Solenoid; 11.2MM; 4 Port-4 Way; 3 Position; Hydraulic; Adjustable Solenoid - Spring/Adjustable Solenoid - Spring Return; 24 VDC; 5080 PSI; -22 To 176 Deg F; Buna-N Seal

Part #

44287700

BDI #
27572054

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1733.6651000000002 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,733.67 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ARGO-HYTOS
Manufacturer Name
ARGO-HYTOS
Minimum Buy Quantity
N/A
UNSPSC
40141600
Weight / Kilogram
5.71
Product Group - BDI
F02352
Valve Type
Spool | Solenoid
Port Type
11.2MM
Number of Ports/Way
4 Port | 4 Way
Number of Positions
3 Position
Actuation
Adjustable Solenoid - Spring | Adjustable Solenoid - Spring Return
Voltage
24 VDC
Media
Hydraulic
Maximum Pressure
5080 PSI
Operating Pressure Range
0 To 5080 PSI
Operating Temperature Range
-22 To 176 Deg F
Seal Type
Buna-N
Inch - Metric
Metric
Other Features
15.85 GPM Flow Capacity | Electronic Control Unit with Analogue Input Command Signal
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Spool Solenoid
Manufacturer URL
https://www.argo-hytos.com
Weight / LBS
11.68
Long Description
Spool Valve; Solenoid; 11.2MM; 4 Port-4 Way; 3 Position; Hydraulic; Adjustable Solenoid - Spring/Adjustable Solenoid - Spring Return; 24 VDC; 5080 PSI; -22 To 176 Deg F; Buna-N Seal
Overall Width
2.441 Inch | 62 Millimeter
Overall Height
4.567 Inch | 116 Millimeter
Overall Length
12.598 Inch | 320 Millimeter
