SY5120-BYO-C6F-Q https://www.bdiexpress.com/medias/INDSMCVALVEX-SY5120-DO-C6-300x300.jpg?context=bWFzdGVyfHJvb3R8MjE5MzJ8aW1hZ2UvanBlZ3xhREk0TDJobE9DOHhNRFl3TlRVd01EZzVNVEUyTmk5SlRrUlRUVU5XUVV4V1JWaGZVMWsxTVRJd1gwUlBYME0yWHpNd01IZ3pNREF1YW5Cbnw2MTc1ZjAyOTg3MWUzNjdlZDEyNzZlOGFhMTQxZDgwMDg2NzAwZDliZWIwOTBkYTc0ZjUwY2RkNTM3NzY4Y2Jl
25787068 Hydraulic and Pneumatic Valves

SMC SMC

SY5120-BYO-C6F-Q

Description

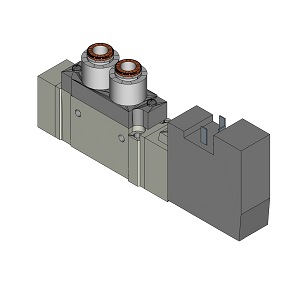

SY5120-BYO-C6F-Q SOLENOID VALVE ; BODY PT

Valve; 6 MM Tubing OD Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VAC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY5120-BYO-C6F-Q

BDI #
25787068

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

86.83930000000001 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 86.84 / each
$ 86.84 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141605
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Solenoid
Port Type
6 MM Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
24 VAC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Metric
Other Features
0.33/0.52 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Non Locking Type Manual Override | DIN Terminal without Connector | One Touch Fitting | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.23148
Long Description
Valve; 6 MM Tubing OD Port; 5 Port - 4 Way; 2 Position; Pneumatic; 24 VAC; Solenoid - Air Pilot/Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
4.165 Inch | 105.8 Millimeter
Overall Width
0.654 Inch | 16.6 Millimeter
Overall Height
1.713 Inch | 43.5 Millimeter
