VFA5144-04N https://www.bdiexpress.com/medias/INDSMCVALVEX-VFA5144-02-300x300.jpg?context=bWFzdGVyfHJvb3R8NTgyN3xpbWFnZS9qcGVnfGFEbGtMMmd4TXk4eE1EYzJPREkyTnpNME5UazFNQzlKVGtSVFRVTldRVXhXUlZoZlZrWkJOVEUwTkY4d01sOHpNREI0TXpBd0xtcHdad3w1YjY5MjdlZjIwYzc5MmVlNmI0MjA4ZGEzMzUwZmI4NWE1MjBmN2E4ZjRkMDFjNjg2NzJlNDg3MmQxZWRhZTA3
17870646 Hydraulic and Pneumatic Valves

SMC SMC

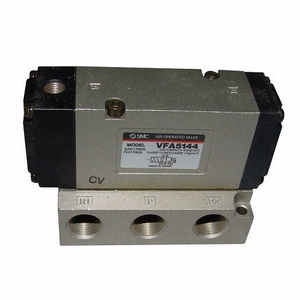

VFA5144-04N

Description

VFA5144-04N

Flow Control Valve; 1/2" FNPT Port; 5 Port | 4 Way; 2 Position; Pneumatic; Air Pilot - Spring | Air Pilot Return; 130 PSI; 14 To 140 Deg F; HNBR Seal; Aluminum

Part #

VFA5144-04N

BDI #
17870646

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

207.21 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 207.21 / each BDIExpress
QTY

Inventory

Total: 2

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141609
Weight / Kilogram
0.499
Product Group - BDI
F02352
Valve Type
Flow Control
Port Type
1/2" FNPT
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Air Pilot - Spring | Air Pilot Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
130 PSI
Operating Pressure Range
22 To 130 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
HNBR
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.7/3 Cv Factor | Air Fluid
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.70
Noun
Valve
Keyword String
Flow Control
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.23459
Long Description
Flow Control Valve; 1/2" FNPT Port; 5 Port | 4 Way; 2 Position; Pneumatic; Air Pilot - Spring | Air Pilot Return; 130 PSI; 14 To 140 Deg F; HNBR Seal; Aluminum
Overall Height
3.091 Inch | 78.5 Millimeter
Overall Length
4.409 Inch | 112 Millimeter
Overall Width
2.283 Inch | 58 Millimeter
