VHS30-N03-MZ-D https://www.bdiexpress.com/medias/INDSMCVALVEX-26400657-300x300.jpg?context=bWFzdGVyfHJvb3R8ODk5MHxpbWFnZS9qcGVnfGFEQmtMMmhoTmk4eE1EazFPREUxTmpNd01ETXhPQzlKVGtSVFRVTldRVXhXUlZoZk1qWTBNREEyTlRkZk16QXdlRE13TUM1cWNHY3wwZDZjYmRhMjc2YTljNjc0MDlkMTUxZGQzYzQ0MDM1NTkyOGQ1OGU3MzIwODY1N2ZhZDY2ZjgyMWFjM2I4Y2Rl
26400657 Hydraulic and Pneumatic Valves

SMC SMC

VHS30-N03-MZ-D

Description

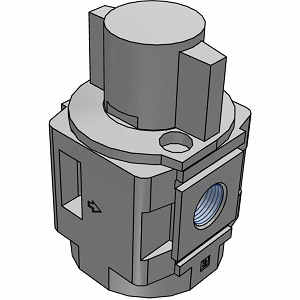

VHS30-N03-MZ-D PRESSURE RELIEF VALVE ; 3 PORT

Relief Valve; 3/8" FNPT; 3 Port | 3 Way; 2 Position; Pneumatic; Spring - Detent | Manual Return; 145 PSI; 23 To 140 Deg F; HNBR Seal; Aluminum

Part #

VHS30-N03-MZ-D

BDI #
26400657

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

45.32 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 45.32 / each BDIExpress
QTY

Inventory

Total: 20

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
UNSPSC
40141606
Weight / Kilogram
0
Product Group - BDI
F02234
Valve Type
Relief
Port Type
3/8" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Spring - Detent | Manual Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
15 To 145 PSI
Operating Temperature Range
23 To 140 Deg F
Seal Type
HNBR
Body Material
Aluminum
Inch - Metric
Inch
Other Features
2.3/1.9 Cv Factor | Air Fluid | With Locking Holes | White Body | In/Out Position | Metal Handle
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.40.00.00
Noun
Valve
Keyword String
Relief
Manufacturer URL
https://www.smcworld.com
Weight / LBS
0.399
Long Description
Relief Valve; 3/8" FNPT; 3 Port | 3 Way; 2 Position; Pneumatic; Spring - Detent | Manual Return; 145 PSI; 23 To 140 Deg F; HNBR Seal; Aluminum
Overall Length
2.087 Inch | 53 Millimeter
Overall Width
2.087 Inch | 53 Millimeter
